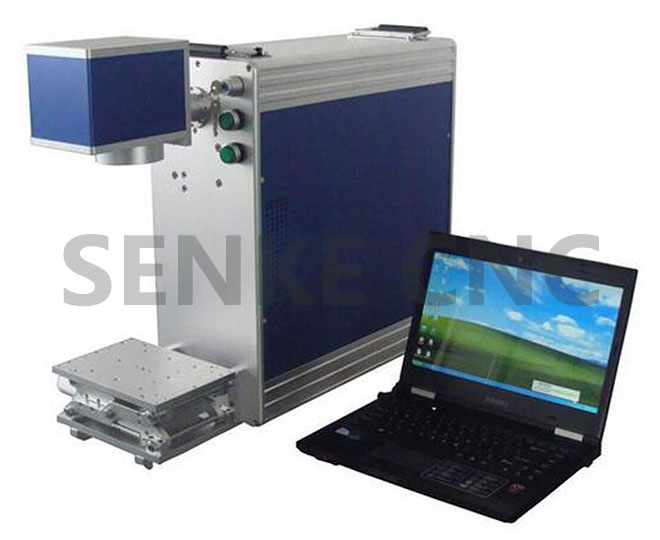

光纤打标机

Main Features:

1. High quality laser path suitable for delicate marking.1/4 of diode laser.
       2. stable power bring high speed laser marking. Unit pulse power surge is lower than 1%. Easy control laser dot size, thickness and shape.
       3. High speed 2-3 times over than traditional diode pumped marking machine.
       4. Air-cooling smart machine size and weight
       5. Long lifetime.

Technical Parameter:

Model

SKD-10FP

SKD-20FP

SKD-30FP /50FP

Laser Power

10W

20W

30W/50W

Laser Wavelength

1064nm

Q-frequency

20KHz~30KHz

Divergence

0.3mard

Marking Range

100*100mm

Minimum Line Width

0.02mm

Minimum Character

0.15mm

Marking Depth

0 ~0.5mm

Engraving Line Speed

≤7000mm/s

Repeatability Accuracy

±0.001mm

Beam Quality

M2:1.2~1.8

Marking Format

Graphics, Text, Bar Codes, Two-dimensional Code, Automatically Marking the Date,Batch Number,Serial Number,Frequency,etc.

Graphic Format Supported

bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.

Working Voltage

220V±10%/50Hz/4A

Unit Power

0.5kw

Working Condition:Humidity

5%-75%Free of Condensed Water
