Main Features：
1.Mach 3 control steel made new dargon gate,strong enough
2. X、Y axes transmission with gear rack, Z axis transmission with imported ball screws, ensures stable and smooth movement of the machine.
3. HQD/HSD aicooling spindle,strong power,suitable for cutting work needed
4. Applicatin of driver with high definition subdivision ensures fast speed and high accuracy.
5. High power spindle, brushless, water cooling/air cooling, working vigorously with low noise.
6. the Y adopt taiwan imported hiwin/pmi square rails,fast speed,high precision
7.strongest body structure,thicked wall never broken or damage
Technical Parameter:
|
Model |
SKW-1325B/SKW-1530B/SKW-2030B
etc,as user customized |
|
Working area (X*Y*Z) |
1300*2500*600mm |
|
Body structure |
seamless welded steel
structure,PVC t-slot table |
|
X, Y Structure |
rack and pinion transmission,
Taiwan hiwin square rails |
|
Z Structure |
Taiwan original TBI ball screw |
|
Max Moving Speed |
35000mm/min |
|
Max Engraving Speed |
24000mm/min |
|
XYZ traveling positioning accuracy |
±0.01mm |
|
Spindle power |
3.2KW water cooling /3.5KW
aircold spindle(4.5KW/
5.5KW/ 6KW/9KW Optional) |
|
Spindle Speed |
0-24,000rpm |
|
Inverter |
Fuling Inverter
(Delta Inverter Optional) |
|
Voltage |
380V/415V 3 Phase 50/60Hz
(Optional:220V Single/3 Phase 50/60Hz
or 110V Single Phase 50/60Hz ) |
|
Drive type |
stepper motors& leadshine drivers
(leadshine/YASKAWA servo optional) |
|
Working Dictate |
G Code |
|
Operating system |
4 Axis use Mach 3(DSP A11
Control System/NC-studio
control system optional) |
|
software |
Artcam(Type 3/ JDpaint optional) |
|
Tool sensor |
Yes,included |
|
Auto oil lubricator |
Yes,included |
|
Running Environment |
Temperature: 0℃~45℃ |
|
Relative humidity |
30%-75% |
|
Package size |
3.67*2.26*2.15M |
|
G.W |
1380KGS |
|

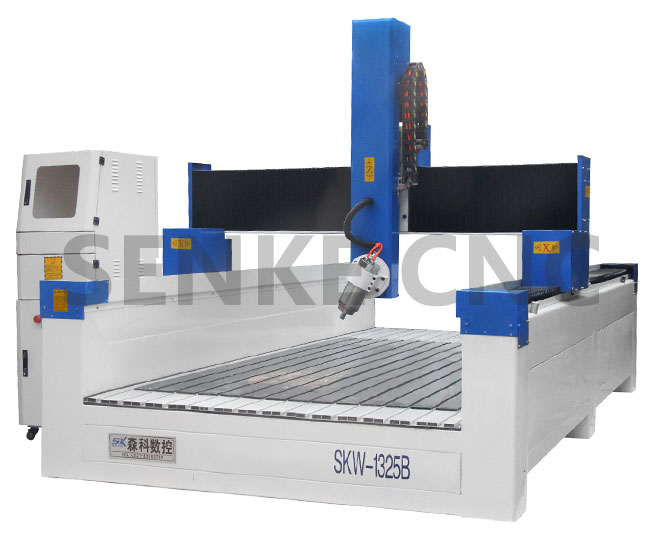

Model |
SKW-1325B |
|
Working area (X*Y*Z) |
1300*2500*600mm |
|
Body structure |
seamless welded steel
structure,PVC t-slot table |
|
X, Y Structure |
rack and pinion transmission,
Taiwan hiwin square rails |
|
Z Structure |
Taiwan original TBI ball screw |
|
Max Moving Speed |
35000mm/min |
|
Max Engraving Speed |
24000mm/min |
|
XYZ traveling positioning accuracy |
±0.01mm |
|
Spindle power |
3.2KW water cooling /3.5KW
aircold spindle(4.5KW/
5.5KW/ 6KW/9KW Optional) |
|
Spindle Speed |
0-24,000rpm |
|
Inverter |
Fuling Inverter
(Delta Inverter Optional) |
|
Voltage |
380V/415V 3 Phase 50/60Hz
(Optional:220V Single/3 Phase 50/60Hz
or 110V Single Phase 50/60Hz ) |
|
Drive type |
stepper motors& leadshine drivers
(leadshine/YASKAWA servo optional) |
|
Working Dictate |
G Code |
|
Operating system |
4 Axis use Mach 3(DSP A11
Control System/NC-studio
control system optional) |
|
software |
Artcam(Type 3/ JDpaint optional) |
|
Tool sensor |
Yes,included |
|
Auto oil lubricator |
Yes,included |
|
Running Environment |
Temperature: 0℃~45℃ |
|
Relative humidity |
30%-75% |
|
Package size |
3.67*2.26*2.15M |
|
G.W |
1380KGS |
