Main Features：

1.Welded structure of thickening square tube, together with round rials or Taiwan imported guide rail to ensure running speed and accuracy.
       2.Cutting head with cooling system can quickly cool surface of material to avoid burr and residue.
       3.Power supply adjusts current according to different thickness of the material to ensure cutting materials without burr.
       4.processed Materials of small and neat kerf ,without secondary processing.
       5.Advanced digital control system,large capacity storing function, convenient to read and process.
       6.control system:nc-studio or dsp(customer choose)
      7.Applicable industry: advertising industry, arts and handicrafts cutting, metal plate cutting.

8.USA Hypertherm and THERMADYNE plasma power available

Technical Parameter:

Model

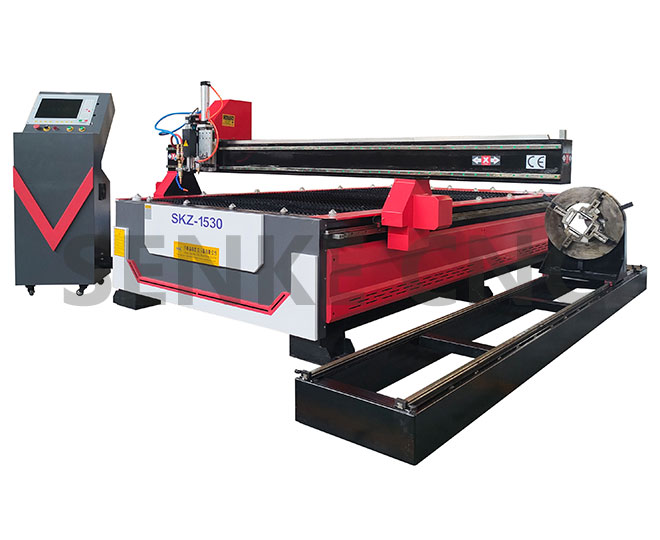

SKZ-1325/SKZ-1530/SKZ-2060etc,as user customized

Working area (X*Y)

1300*2500mm

Body structure

Thicken Welded steel made machine body

X, Y Structure

Gear rack

rails

Taiwan HIWIN square rails

Z Structure

Taiwan TBI ball screw

X, Y Resolution

<0.01mm

Max Moving Speed

80000mm/min

Max Cutting Speed

60000mm/min

XYZ traveling positioning accuracy

±0.01mm

XYZ repositioning accuracy

±0.01mm

Plasma power

(Huayuan) 100A plasma power,120A,160A,200A optional

Voltage

380v, three phase

Drive type

Servo optional

Working Dictate

G Code

Operating system

Start control system

software

Original Fastcam/StarCAM

oil lubricator

Yes, included

Wire protect

Yes ,included

Running Environment

Temperature: -10℃～45℃

After packed size

About 3.2*2.1*1.75M(L*W*H)

G.W

1300kgs

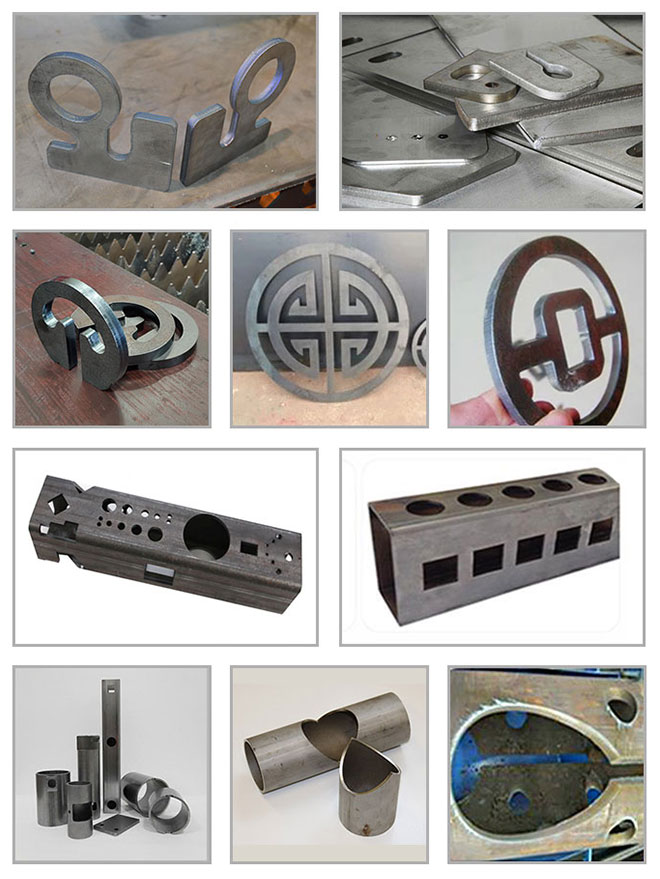

Ship Building, Construction Equipment, Transport Equipment, Aerospace Industry,

Bridge Building, military industrial, wind power, Structural Steel, Boiler containers, Agriculture Machinery,

Chassis electrical cabinets, Elevator manufacturers, Textile Machinery, Environmental protection equipment,ect,

such materials as steel plate, aluminum,iron, Copper.
