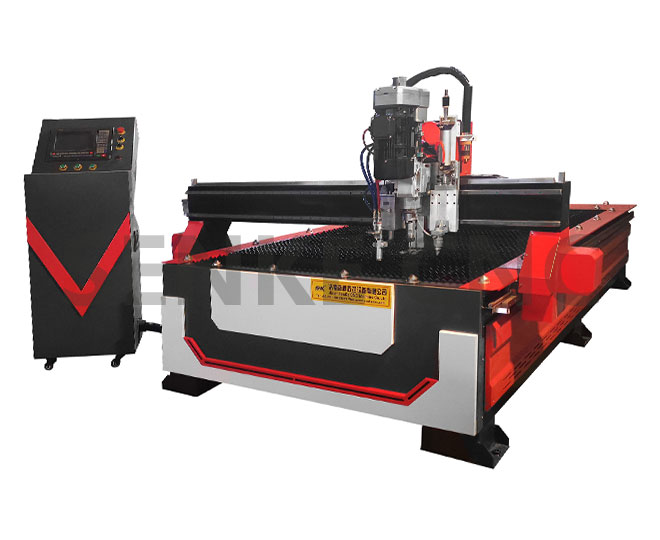

Main Features
1.Welded structure of thickening square tube, together with round rials or Taiwan imported guide rail to ensure running speed
2.Cutting head with cooling system can quickly cool surface of material to avoid burr and residue.
3.Power supply adjusts current according to different thickness of the material to ensure cutting materials without burr.
4.processed Materials of small and neat kerf ,without secondary processing.
5.Advanced digital control system,large capacity storing function, convenient to read and process.
6.control system:nc-studio or dsp(customer choose)
7.Applicable industry: advertising industry, arts and handicrafts cutting, metal plate cutting.
|
Model |
SKZ-1325 /SKZ-1530/SKZ-2060etc,as user customized |
|
Working area (X*Y) |
1300*2500mm |
|
Body structure |
Thicken Welded steel made machine body |
|
X, Y Structure |
Gear rack |
|
rails |
Taiwan HIWIN square rails |
|
Z Structure |
Taiwan TBI ball screw |
|
X, Y Resolution |
<0.01mm |
|
Max Moving Speed |
80000mm/min |
|
Max Cutting Speed |
60000mm/min |
|
XYZ traveling positioning accuracy |
±0.01mm |
|
XYZ repositioning accuracy |
±0.01mm |
|
Plasma power |
(Huayuan) 100A plasma power,120A,160A,200A optional |
|
Voltage |
380v, three phase |
|
Drive type |
Servo optional |
|
Working Dictate |
G Code |
|
Operating system |
Start control system |
|
software |
Original Fastcam/StarCAM |
|
oil lubricator |
Yes, included |
|
Wire protect |
Yes ,included |
|
Running Environment |
Temperature: -10℃～45℃ |
|
After packed size |
About 3.2*2.1*1.75M(L*W*H) |
|
G.W |
1300kgs |
|
Model |
SKZ-1325 |
|
Working area (X*Y) |
1300*2500mm |
|
Body structure |
Thicken Welded steel made machine body |
|
X, Y Structure |
Gear rack |
|
rails |
Taiwan HIWIN square rails |
|
Z Structure |
Taiwan TBI ball screw |
|
X, Y Resolution |
<0.01mm |
|
Max Moving Speed |
80000mm/min |
|
Max Cutting Speed |
60000mm/min |
|
XYZ traveling positioning accuracy |
±0.01mm |
|
XYZ repositioning accuracy |
±0.01mm |
|
Plasma power |
(Huayuan) 100A plasma power,120A,160A,200A optional |
|
Voltage |
380v, three phase |
|
Drive type |
Servo optional |
|
Working Dictate |
G Code |
|
Operating system |
Start control system |
|
software |
Original Fastcam/StarCAM |
|
oil lubricator |
Yes, included |
|
Wire protect |
Yes ,included |
|
Running Environment |
Temperature: -10℃～45℃ |
|
After packed size |
About 3.2*2.1*1.75M(L*W*H) |
|
G.W |
1300kgs |
|
Model |
SKZ-1325 |
|
Working area (X*Y) |
1300*2500mm |
|
Body structure |
Thicken Welded steel made machine body |
|
X, Y Structure |
Gear rack |
|
rails |
Taiwan HIWIN square rails |
|
Z Structure |
Taiwan TBI ball screw |
|
X, Y Resolution |
<0.01mm |
|
Max Moving Speed |
80000mm/min |
|
Max Cutting Speed |
60000mm/min |
|
XYZ traveling positioning accuracy |
±0.01mm |
|
XYZ repositioning accuracy |
±0.01mm |
|
Plasma power |
(Huayuan) 100A plasma power,120A,160A,200A optional |
|
Voltage |
380v, three phase |
|
Drive type |
Servo optional |
|
Working Dictate |
G Code |
|
Operating system |
Start control system |
|
software |
Original Fastcam/StarCAM |
|
oil lubricator |
Yes, included |
|
Wire protect |
Yes ,included |
|
Running Environment |
Temperature: -10℃～45℃ |
|
After packed size |
About 3.2*2.1*1.75M(L*W*H) |
|
G.W |
1300kgs/1400kgs/2000kgs |
Ship Building, Construction Equipment, Transport Equipment, Aerospace Industry, Bridge Building, military industrial, wind power, Structural Steel, Boiler containers, Agriculture Machinery, Chassis electrical cabinets, Elevator manufacturers, Textile Machinery, Environmental protection equipment,ect,such materials as steel plate, aluminum,iron, Copper.
