Main Features：
1.with HIWIN/PMI high accuracy square rail, perfect performance.
2. High efficiency tube with stable laser path,
3. Red cross point offers highest accuracy position.
4. Professional motion control card offers continue fast curve cutting together with shortest path selection. Shorten work time
Technical Parameter:
|

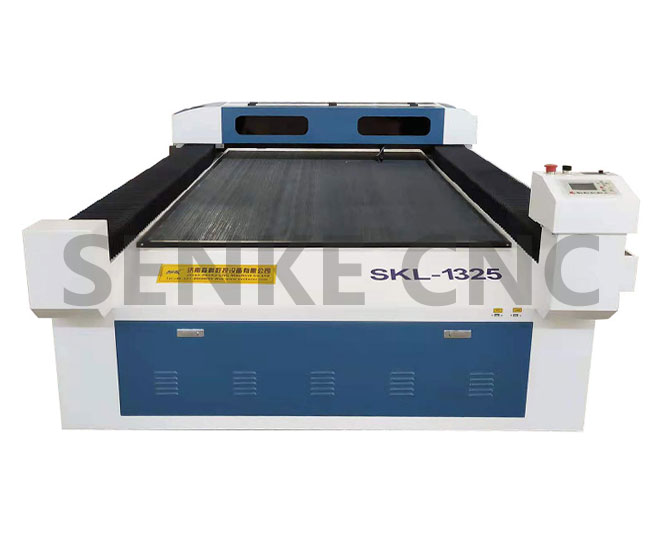

Model |
SKL-1325 |
SKL-1530 |
|
Working area (X*Y) |
1300*2500mm |
1500*3000mm |
|
Body structure |
Thicken steel made lathe |
Thicken steel made lathe |
|
X,Y rails |
Taiwan HIWIN square rails |
Taiwan HIWIN square rails |
|
X, Y Resolution |
<0.02mm |
<0.02mm |
|
Max Moving Speed |
30000mm/min |
30000mm/min |
|
Max cutting Speed |
25000mm/min |
25000mm/min |
|
XYZ traveling positioning accuracy |
±0.02mm |
±0.02mm |
|
XYZ repositioning accuracy |
±0.02mm |
±0.02mm |
|
Laser tube |
RECI series Laser Tube |
RECI series Laser Tube |
|
Laser power |
80w/100w/160w/180w |
80w/100w/160w/180w |
|
Voltage |
220v ,single phase/330v, 3-phase/other can be customized |
220v ,single phase/330v, 3-phase/other can be customized |
|
Drive type |
Lead shine stepper motors & drivers |
Lead shine stepper motors & drivers |
|
Interface |
USB |
USB |
|
Operating system |
RD DSP panel controller and card |
RD DSP panel controller and card |
|
Graphic format |
English1×1mm |
English1×1mm |
|
Minimum shaping character |
Professional laser cutting engraving head |
Professional laser cutting engraving head |
|
Running Environment |
Temperature: -10℃～45℃ |
Temperature: -10℃～45℃ |
|
PS: the machine sizes and specifications can be customized |
Applicable industry:
Mould industry (construction mould, aviation and navigation mould, wooden mould), advertising, decoration, arts and crafts, electronics, electric appliances, etc.
Applicable Materials:
materials such as acryl, wood planks(light planks,candlenut wood),bamboo ware, double color board, paper, leather, shell, coconut shell, ox horn, resin animal grease, ABS board, lamp shade, etc
