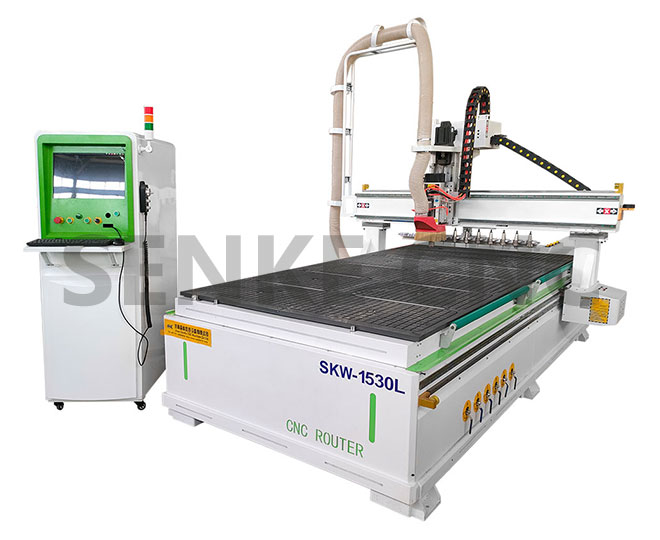

Straight Line Tool Changing Engraving Machine from SenKe CNC Router machine co;ltd.It adopt different parts,which suitable for different materials work.The machine can changing tool,according to the parts choice,the machine use to engraving,carving,cutting,milling,drilling etc for all kinds of materials,as for the models which you concerned,details please find below
|
Model |
SKW-1325L |
SKW-1530L |
SKW-2040L |
|
X,Y,Z axis working g area |
1300*2500mm |
1500*3000mm |
2000*4000mm |
|
X,Y movement |
Rack and pinion |
Rack and pinion |
Rack and pinion |
|
Z movement |
Ballscrew transmission |
Ballscrew transmission |
Ballscrew transmission |
|
Guide |
Taiwan HIWIN 25/30 square rails |
Taiwan HIWIN 25/30 square rails |
Taiwan HIWIN 25/30 square rails |
|
Max idling speed |
60000mm/min |
60000mm/min |
60000mm/min |
|
Max engraving speed |
30000mm/min |
30000mm/min |
30000mm/min |
|
Spindle power |
9kw HQD/HSD ATC spindle |
9kw HQD/HSD ATC spindle |
9kw HQD/HSD ATC spindle |
|
Spindle speed |
18000rpm |
18000rpm |
18000rpm |
|
Interver |
11kw |
11kw |
11kw |
|
Driver motors |
Japan Yaskawa servo motors |
Japan Yaskawa servo motors |
Japan Yaskawa servo motors |
|
Tool magazine |
6/8/10 pieces inline type |
6/8/10 pieces inline type |
6/8/10 pieces inline type |
|
Drivers |
Servo drivers |
Servo drivers |
Servo drivers |
|
Control system |
Tiwan SYNTEC control |
Tiwan SYNTEC control |
Tiwan SYNTEC control |
|
Working voltage |
380V or customized |
380V or customized |
380V or customized |
|
Command code |
G code |
G code |
G code |
|
Software |
Artcam,type 3,etc |
Artcam,type 3,etc |
Artcam,type 3,etc |
|
PS: the machine working size and specifications can be customized |
