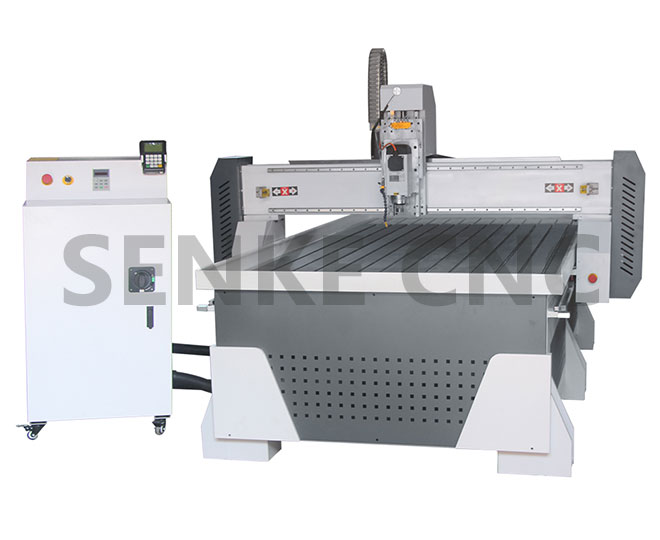

主要特点：
1. nc-studio /DSP控制，最强钢制新龙门，足够坚固
2. X、Y轴传动采用齿轮齿条，Z轴传动采用进口滚珠丝杠，确保机器运动平稳顺畅。
3. 一体机独立控制箱，可放电脑
4. 应用高清细分驱动，速度快，精度高。
5、大功率主轴，无刷，水冷/风冷，运转强劲，噪音低。
6. Y采用台湾进口hiwin/pmi方轨，速度快，精度高
7.最强的车身结构，厚壁永不破裂或损坏
8.带水箱适合各种材料工作
|
Model |
SKS-9015 |
SKS-1325 |
Customized |
|
Working area (X*Y*Z) |
900*1500*300mm |
1300*2500*300mm |
According to Size |
|
Body structure |
Iron casted,strong enough for metals work |
Iron casted,strong enough for metals work |
Iron casted,strong enough for metals work |
|
X, Y, Z Structure |
Taiwan HIWIN square rails |
Taiwan HIWIN square rails |
Taiwan HIWIN square rails |
|
X, Y Resolution |
<0.03mm |
<0.03mm |
<0.03mm |
|
Max Moving Speed |
18000mm/min |
18000mm/min |
18000mm/min |
|
Max Engraving Speed |
10000mm/min |
10000mm/min |
10000mm/min |
|
XYZ traveling positioning accuracy |
±0.01mm |
±0.01mm |
±0.01mm |
|
XYZ repositioning accuracy |
±0.01mm |
±0.01mm |
±0.01mm |
|
Spindle power |
3.0kw stone professional use spindle(optional) |
3.0kw stone professional use spindle(optinal) |
3.0kw stone professional use spindle(optinal) |
|
Spindle Speed |
0-24,000rpm |
0-24,000rpm |
0-24,000rpm |
|
Voltage |
110V/220v/380v(choice) |
110V/220v/380v(choice) |
110V/220v/380v(choice) |
|
Drive type |
Leadshine stepper/ servo motors and drivers |
Leadshine stepper/ servo motors and drivers |
Leadshine stepper/ servo motors and drivers |
|
Working Dictate |
G Code |
G Code |
G Code |
|
Operating system |
NC -Studio/DSP A11/MAch3,etc |
NC -Studio/DSP A11/Mach3,etc |
NC -Studio/DSP A11/Mach3,etc |
|
Interface |
USB |
USB |
USB |
|
Table |
T-slot table with clamps |
T-slot table with clamps |
T-slot table with clamps |
|
Package size |
3.4*2.05*1.89M |
3.7*2.16*1.89M |
According to size |
|
G.W |
900KGS |
1400KGS |
According to size |
