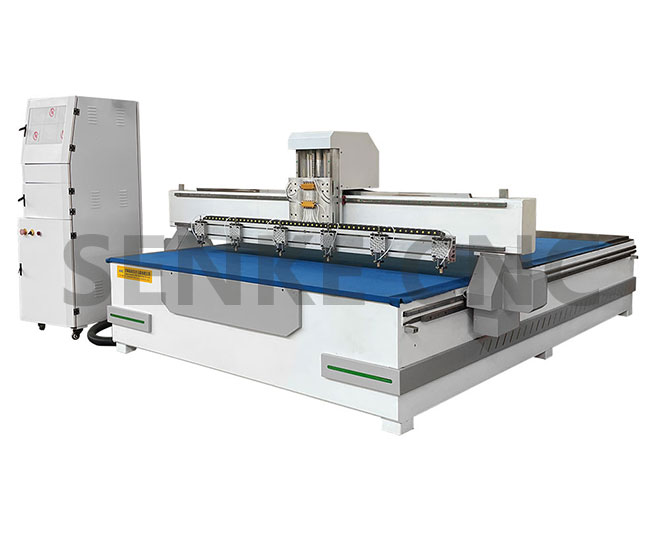

Main feature:
1. transmission with ball screws,keeping high precision and working stably
2. T-slot table with hiwin square rails suitable for all kinds of materials
3.table move with the most highest working precison,at the sam time,the LED light support day and night work
4. Optimized mechanical and electrical design with well-selected brand parts minimizes breakdown rate.
5. Adpot advanced cnc system,configured with practical and easy-learned software,can conveniently check the moving path of tool,and adjust the processing depth of Z axis and the speed of motor
Technical Parameter:
|
Model |
SKQ-1313 |
SKQ-1325 |
|
Cutting area (X*Y) |
1300*1300mm |
1300*2500mm |
|
X Y Z Movement |
Imported Gear Rack |
Imported Gear Rack |
|
Z Structure |
Taiwan ball screw |
Taiwan ball screw |
|
XYZ rails |
Taiwan HIWIN square rails |
Taiwan HIWIN square rails |
|
Max Moving Speed |
20000mm/min |
20000mm/min |
|
Max Engraving Speed |
12000mm/min |
12000mm/min |
|
Voltage |
220v/single or 380v/3phase or as customer needed |
220v/single or 380v/3phase or as customer needed |
|
Drive type |
Stepper motors and leadshine drivers |
Stepper motors and leadshine drivers |
|
Working Dictate |
G Code |
G Code |
|
Operating system |
Professional Glass cutting operating system |
Professional Glass cutting operating system |
|
Software |
Professional Glass cutting software |
Professional Glass cutting software |
|
Working table |
Professional glass protection working table |
Professional glass protection working table |
|
Minimum glass size |
1x1mm |
1x1mm |
|
Wire protect |
Yes,included |
Yes,included |
|
Package |
Export wooden box |
Export wooden box |
|
After packed size |
2×2.1×1.75M |
3.2×2.1×1.8M |
|
G.W |
830KGS |
1200KGS |
