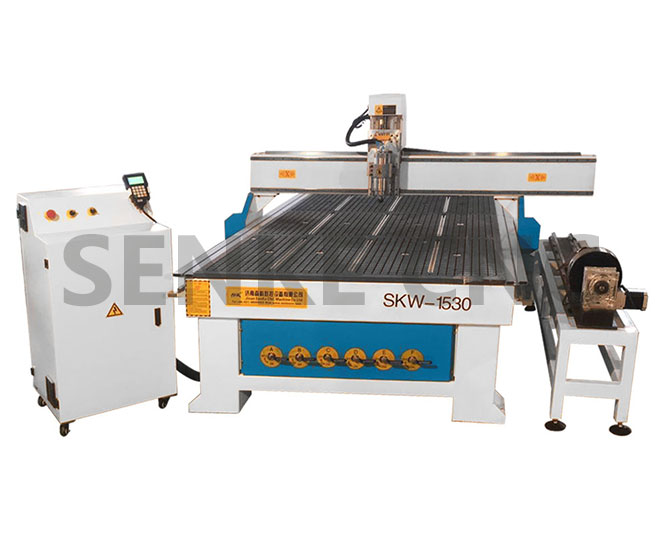

Main Features：
1. DSP Control suppot offline work,steel made new dargon gate,strong enough
2. X、Y axes transmission with gear rack, Z axis transmission with imported ball screws, ensures stable and smooth movement of the machine.
3. HQD/HSD aicooling spindle,strong power,suitable for cutting work needed
4. Applicatin of driver with high definition subdivision ensures fast speed and high accuracy.
5. High power spindle, brushless, water cooling/air cooling, working vigorously with low noise.
6. the Y adopt taiwan imported hiwin/pmi square rails,fast speed,high precision
Technical Parameter:
|
Model |
SKW-1325 |
|
Working area (X*Y*Z) |
1300*2500*200mm |
|
Table Surface |
T-slot working table with hard black PVC |
|
Body structure |
Thicken steel Big and heavy tube made body |
|
Frame |
New style heavy duty welded |
|
Leg pad |
depth 10MM |
|
X, Y Structure |
gear rack, Hiwin rail line bearings |
|
rails |
Original Taiwan HIWIN blocks with
original stamp use on rails |
|
Gear rack |
Gear rack with pingchuan brand |
|
Z Structure |
25mm Taiwan TBI ball screw |
|
X, Y Resolution |
<0.01mm |
|
Max Moving Speed |
70000mm/min |
|
Max Engraving Speed |
50000mm/min |
|
XYZ traveling positioning accuracy |
±0.01mm |
|
Spindle power |
4.5 KW HQD air cooling spindle(5.5
/6/9KW optional)/water cooling optional |
|
Spindle Speed |
0-18,000rpm |
|
Inverter |
Fuling inverter(Delta inverter optional) |
|
Voltage |
110v/220v/380v/415v , 50HZ/60HZ,
1phase/3phase |
|
Motor&Drive type |
Stepper motors & Lead shine drivers |
|
Working Dictate |
G Code |
|
Operating system |
DSP A11 control system(NC-Studio/MACH3 optional) |
|
Computer interface |
USB |
|
software |
Artcam(Type 3/ JDpaint optional) |
|
Tool sensor |
Yes ,included |
|
oil lubricator |
Yes, included |
|
Wire protect |
Yes ,included |
|
Running Environment |
Temperature: -10℃～45℃ |
|
Relative humidity |
30%-75% |
|
After packed size |
3.2*2.18*1.90M |
|
G.W |
1200kgs |
|
