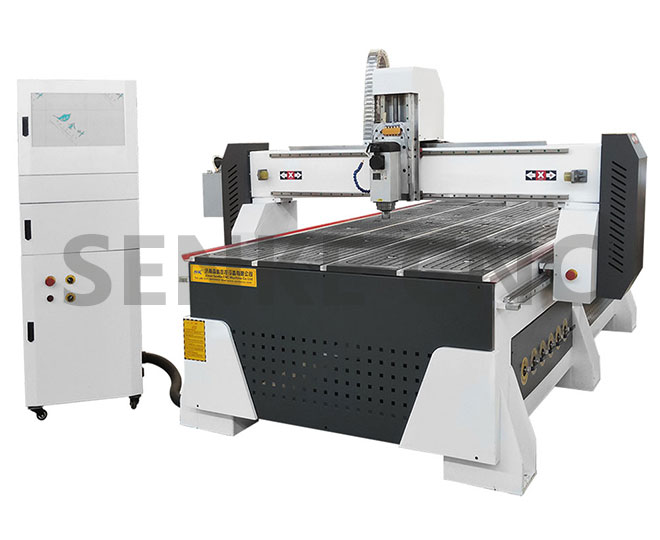

Main Features：
1. DSP Control suppot offline work,steel made new dargon gate,strong enough
2. X、Y axes transmission with gear rack, Z axis transmission with imported ball screws, ensures stable and smooth movement of the machine.
3. HQD/HSD aicooling spindle,strong power,suitable for cutting work needed
4. Applicatin of driver with high definition subdivision ensures fast speed and high accuracy.
5. High power spindle, brushless, water cooling/air cooling, working vigorously with low noise.
6. the Y adopt taiwan imported hiwin/pmi square rails,fast speed,high precision
7.strongest body structure,thicked wall never broken or damage
Technical Parameter:
|
Model |
SKW-1325NV / SKW-1325NV |
|
X,Y,Z axis workin g area |
1300*2500*200mm |
|
Machine size |
3005*2100*1600mm |
|
X,Y movement |
Rack and pinion |
|
Z movement |
Ballscrew transmission |
|
Guide |
Taiwan HIWIN/PMI 20 square rails(round rails optional) |
|
Max idling speed |
40000mm/min |
|
Max engraving speed |
23000mm/min |
|
Spindle power |
3kw/4.5kw/6kw watercooling/aircooling (choose) |
|
Spindle speed |
18000-24000rpm |
|
inverter |
3.7KW/7.5KW(depend on spindle choose) |
|
Drive motors |
Stepper motors (servo motors and drviers optiona) |
|
drivers |
Leadshine |
|
Control system |
NC-Studio as standard/DSP |
|
Working voltage |
1220V/380V or customized |
|
Command code |
G code |
|
software |
Artcam,type 3,etc |
|
collet |
ER 25-32 |
|
Packing dimension |
3.1*2.1*1.82M |
|
weight |
1260kgs/1350kgs |
|
Standard equipment included |
1.automatic oil injection system
2.Tool sensor
3.vacuum table,5.5kw vacuum pump |
Industri dan bahan yang berkenaan:
1. Industri kerja kayu: pemprosesan papan beralun tiga dimensi, pintu kabinet, pintu kayu pepejal, pintu kayu kraf, pintu bebas cat, skrin, pemprosesan tingkap kipas proses, mesin bersinar kasut, kabinet permainan dan panel, meja mahjong, meja komputer dan pemprosesan produk perabot plat.
2. Industri pengiklanan: papan tanda pengiklanan, pengeluaran logo, pemotongan akrilik acuan lepuh, pelbagai bahan pengiklanan dan pengeluaran produk hiasan.
3. Industri acuan: boleh mengukir tembaga, aluminium, besi dan acuan logam lain, serta marmar tiruan, pasir, papan plastik, paip PVC, papan kayu dan acuan bukan logam yang lain.
4. Industri lain: boleh mengukir semua jenis imej, pelepasan, digunakan secara meluas dalam industri hadiah kraf
