CNC Route with ATC(In Disk)

Main features:

1.       taiwan imported syntec or LNC control system,LCD screen touch operate with easy learn,fully function,.

2.       Italy imported HSD brand 9kw aircooling spindle,supply enough strong power,stably run and use,at the same time higher precision

3.       japan imported yaskawa servo motors and drivers,high speed,long life and higher precision

4.       big size gear rack keep the machine run stabely

5.       Taiwan imported hiwin/pmi 25-30 square rails.

6.       dust collect and vacuum table for optional choose

Technical Parameter

Model

SKW-1325D/SKW-1530D/SKW-2030D etc

X,Y,Z axis workin g area

1300*2500*300mm

Machine size

3.1*2.2*1.78m

X,Y movement

Rack and pinion

Z movement

Ballscrew transmission

Guide

Taiwan HIWIN/PMI 25-30 square rails

Max idling speed

60000mm/min

Max engraving speed

30000mm/min

Spindle power

9KW aircooling spindle

Spindle speed

18000rpm

inverter

11kw

Drive motors

Japan Yaskawa  servo motors

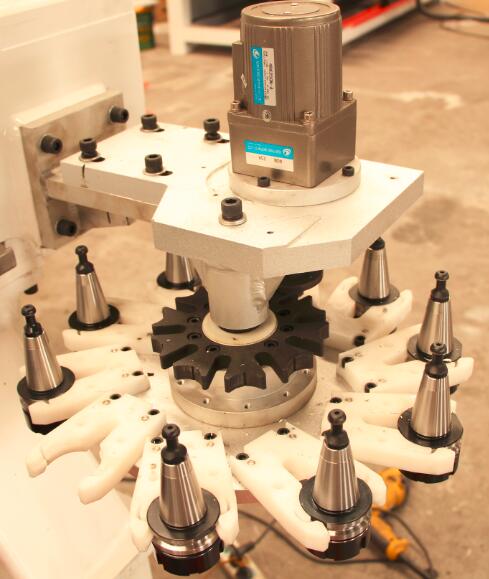

Tool magazine

8 pieces,circular disk/inline type

drivers

Servo drivers

Control system

Taiwan SYNTEC control

Working voltage

380V or customized

Command code

G code

software

Artcam,type 3,etc

collet

ER32-ER40

Packing dimension(L*W*H)

3.5*2.3*1.89M

Standard equipment included

1.automatic oil injection system

2.vacuum table,5.5kw vacuum pump

3.whole set dust collector system
