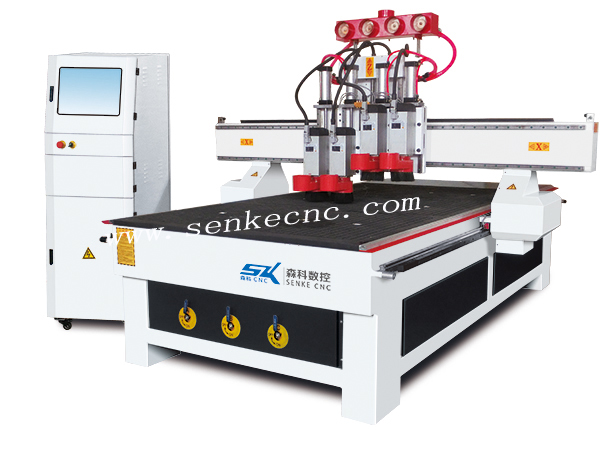

Pneumatic Cylinder ATC cnc router machine

Main features:

1 Integrally cast lathe bed, firm and non-deforming, high rigidity and high accuracy, good performance and durability.
       2 Unique multi-spindle design, quantity of machine heads and power of spindle can be selected according to the customer's requirements. The distance between spindles can be freely adjusted according to the work piece being processed.
       3 One machine can complete the workload of several machines at the same time, saving production time and cost, enhancing the working efficiencye

4.prices was economically than inlin or disk style

 Technical Parameter:



Model

SKW-1325DC-4SKW-1525DC-4

X,Y,Z axis workin g area

1300*2500*200mm

Machine size

2200*3005*1700

X,Y movement

Rack and pinion

Z movement

Ballscrew transmission

Guide

Taiwan HIWIN/PMI 20 square rails

Max moving speed

43000mm/min

Max engraving speed

2500mm/min

Spindle power

3kw/4.5kw watercooling/ aircooling spindle(choose)

Spindle speed

18000-24000rpm

Drive motors

Stepper motors (servo motors&drivers optional)

drivers

Leadshine (or as customer prefer)

Control system

Original nc-studio/dsp optional

Working voltage

220V/380V or customized

Command code

G code

software

Artcam,type 3,etc

collet

ER25-32

Packing dimension

3.1*2.1*1.82M

weight

1380kgs/1400kgs

Standard equipment included

1.automatic oil injection system

2.Tool sensor

3.vacuum table,5.5kw vacuum pump

4.whole set dust collector system
