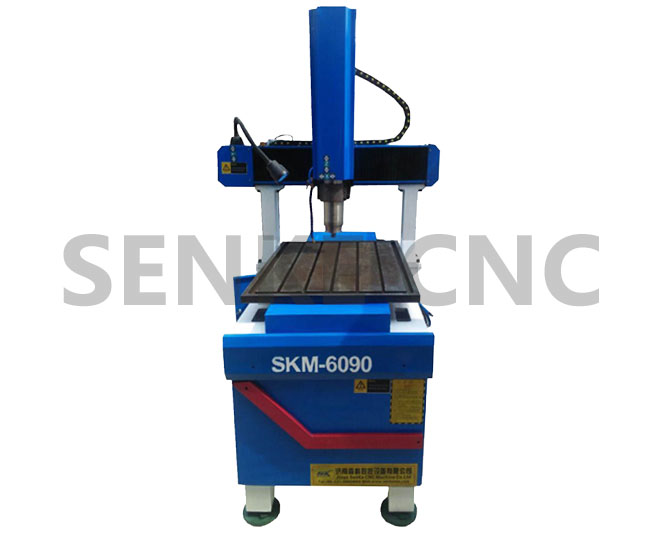

Main features:
1. The machine whole cast iron body, chassis stability high load bearing, used for a long time never deformation, ensure the accuracy of metal processing requirements
2. Special metal spindle optional spindle has permanently power, long life, big power, the machining accuracy increase of 20%
3. Adopt imported ball screw, occlusive close, effectively meet the precision requirement of and improve the metal processing
4. taiwan square rails,support moving table,improving precision greatly,senke sample tested minimum forming 0.5 MM!
5. t-slot table,suitable for all kinds of materials, clamp help fixed carving materials
6. The machine with the sink, faucets and water pump matching accessories, can give the machine cooling in time, effective protection of the main shaft, the material, cutting tool
Technical Parameter:
|
Model |
SKM-6060 |
SKM-6060 |
|
X*Y*Z axis working area |
600*600*80mm |
600*600*80mm |
|
Machine Size |
750x750*81400mm |
|
Machine frame |
whole machine Cast iron |
|
Spindle power |
1.5KW/2.2kw/3kw special metal use spindle(water cooled) |
|
X*Y*Z movement |
Ball Screw /Square rail |
|
Max move speed |
30000mm/min |
|
Max engraving speed |
5000mm/min |
|
Spindle speed |
0-24000rpm |
|
Control system |
NC-Studio as standard（DSP optional) |
|
Drive Motors |
servo motors&drivers(step motors optional) |
|
Voltage |
220v/380v or customized |
|
Working Dictate |
G -code |
|
Software |
artcam |
|
Collet |
ER20 |
|
Packing size |
1.22*1.46*1.65M |
|
Applications:
Advertising (metal plates, hot stamping plate), seals (chapters atoms, copper), signs, electronic, handicrafts, mold and decoration, can be for copper, aluminum, brass, iron, stainless steel, the atomic chapter, battery carbon plate, aluminum-plastic plate, Yang carved, Yin carving, line carve, tone, artistic relief, such as processing, support circular arc bottom, bottom tip, flat characters such as sculpture
