Main Features:
1. Modern smart design. Put on table and work easily.
2. Stronger frame together with HIWIN square rail, high accuracy.
3. Red cross point offers the highest accuracy position.
4. High efficiency tube with stable laser path.
5. Professional motion control card offers continue fast curve cutting together with shortest path selection. Shorten work time.
6. U disk offline operation makes work convenient.
Technical Parameter:
|

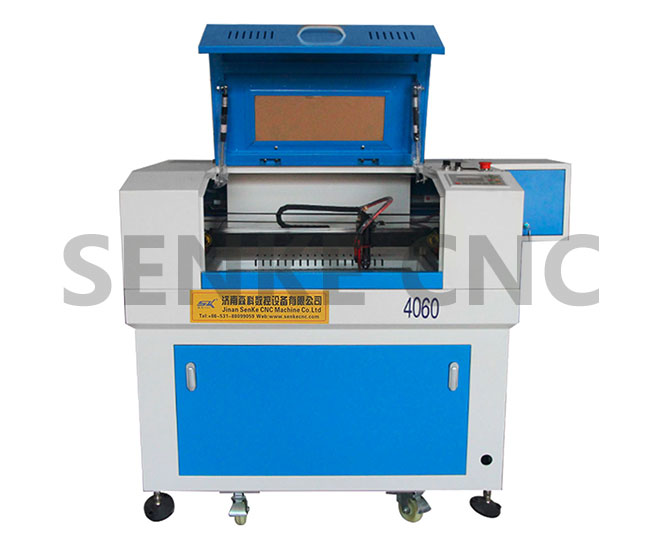

Model |
SKL-4060 |
SKL-6090 |
Option |
|
Working Area |
400*600mm |
600*900mm |
According to Demands |
|
Laser Power |
40W/50W/60W |
|
Laser Type |
CO2 Sealed Laser Tube, 10.6μm |
|
Cooling Type |
Water Cooling |
|
Engraving Speed |
0-60000mm/min |
|
Cutting Speed |
0-40000mm/min |
|
Laser Output Control |
(0-100% Set by Software ) |
|
Min. Engraving Speed |
Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm |
|
Highest Scanning Precision |
4000DPI |
|
Locating Precision |
≤+0.01mm |
|
Controlling Software |
DSP Control System |
|
Graphic Format Supported |
DST PLT BMP DXF DWG AI LAS,etc |
|
Compatible Software |
TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,etc |
|
Color Separation |
Yes |
|
Drive System |
High-precision 3-phase Stepper Motor |
|
Auxiliary Equipments |
Exhaust Fan and Air Exhaust Pipe |
|
power Supply |
AC110V/220V+10%,50HZ/60HZ |
|
Working Environment |
Temperature:0-45℃,Humidity 5-95%(No Condensate Water) |
|
Optional Spare Parts |
Honeycomb Worktable, Rotary Device,Auto-focus Device |
Applicable industry:
Mould industry (construction mould, aviation and navigation mould, wooden mould), advertising, decoration, arts and crafts, electronics, electric appliances, etc.
Applicable Materials:
materials such as acryl, wood planks(light planks,candlenut wood),bamboo ware, double color board, paper, leather, shell, coconut shell, ox horn, resin animal grease, ABS board, lamp shade, etc.
