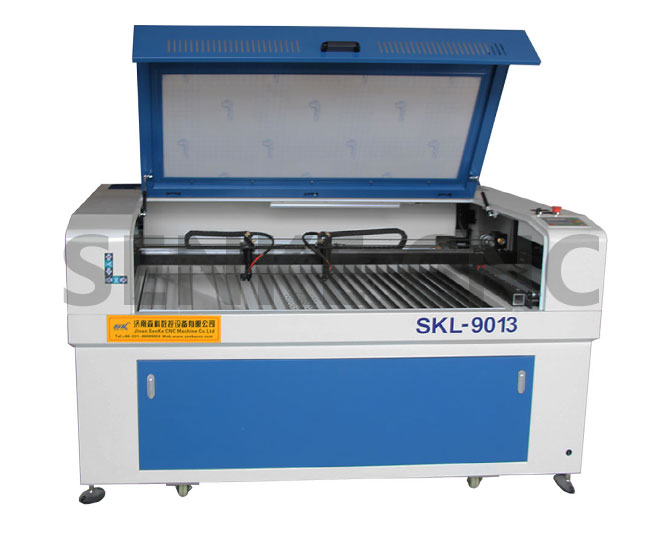

Double heads laser machine

Main Features:

1.  with HIWIN high accuracy square rail, perfect performance.
      2. High efficiency tube with stable laser path,
      3. Red cross point offers highest accuracy position.
      4. Professional motion control card offers continue fast curve cutting together with shortest path selection. Shorten work time.

Technical Parameter:

Model

SKL-4060

SKL-6090

SKL-9012

SKL-1014

Option

Working Area

400*600mm

600*900mm

900*1200mm

1000*1400mm

According to Demands

Laser Power

60w/80w/100w/130w//150w

Laser Type

CO2 Sealed Laser Tube , 10.6μm

Cooling Type

Water Cooling

Engraving Speed

0-60000mm/min

Cutting Speed

0-40000mm/min

Laser Output Control

0-100% set by software

Min. Engraving Size

Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm

Scanning Precision

4000DPI

Locating Accuracy

≤+0.01mm

Controlling Software

DSP Control System

Graphic Format Supported

DST PLT BMP DXF DWG AI LAS,etc

Compatible Software

CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc.

Color Separation

Yes

Drive System

High-precision 3-phase Stepper Motor

Auxiliary Equipments

Exhaust Fan and Air Exhaust Pipe

Power Supply

AC110V/220V+10%,50HZ/60HZ

Working Environment

Temperature:0-45C,Humidity 5-95%(No Condensate Water)

Applicable industry:
Mould industry (construction mould, aviation and navigation mould, wooden mould), advertising, decoration, arts and crafts, electronics, electric appliances, etc.

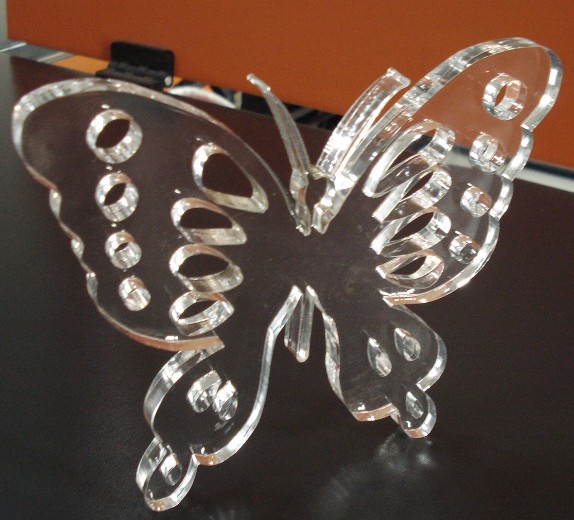

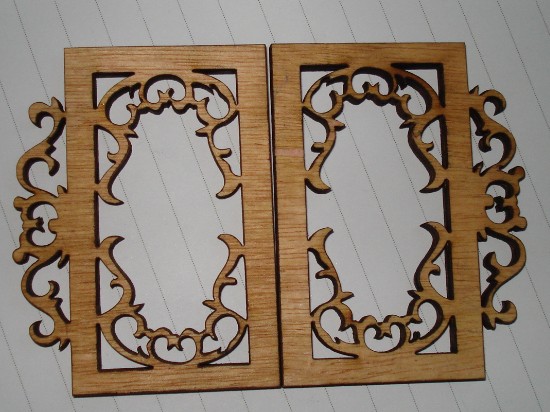

    Applicable Materials:
materials such as acryl, wood planks(light planks,candlenut wood),bamboo ware, double color board, paper, leather, shell, coconut shell, ox horn, resin animal grease, ABS board, lamp shade, etc
