Main features:
1 Integrally cast lathe bed, firm and non-deforming, high rigidity and high accuracy, good performance and durability.

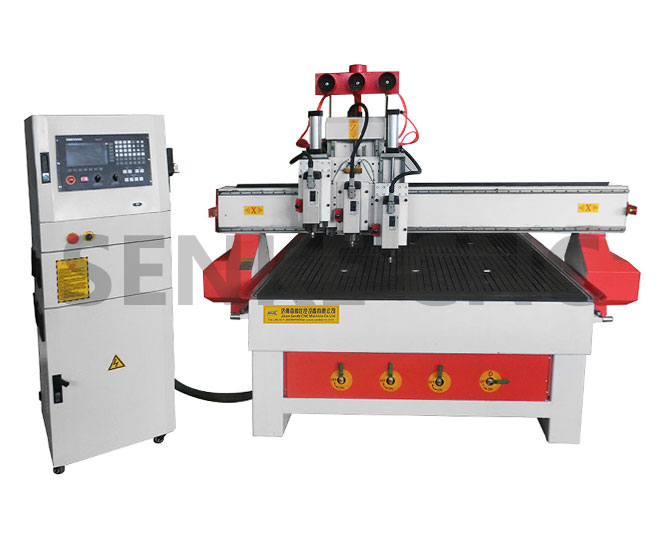

2 Unique multi-spindle design, quantity of machine heads and power of spindle can be selected according to the customer's requirements. The distance between spindles can be freely adjusted according to the work piece being processed.
3 One machine can complete the workload of several machines at the same time, saving production time and cost, enhancing the working efficiencye
4.prices was economically than inlin or disk style
Technical Parameter：
|
Model |
SKW-1325DC-3/SKW-1525DC-3 |
|
X,Y,Z axis workin g area |
1300*2500*200mm |
|
Machine size |
2200*3005*1700 |
|
X,Y movement |
Rack and pinion |
|
Z movement |
Ballscrew transmission |
|
Guide |
Taiwan HIWIN/PMI 20 square rails |
|
Max moving speed |
43000mm/min |
|
Max engraving speed |
2500mm/min |
|
Spindle power |
3kw/4.5kw watercooling/ aircooling spindle(choose) |
|
Spindle speed |
18000-24000rpm |
|
Drive motors |
Stepper motors (servo motors&drivers optional) |
|
drivers |
Leadshine (or customers prefer) |
|
Control system |
Original nc-studio/dsp optional |
|
Working voltage |
220V/380V or customized |
|
Command code |
G code |
|
software |
Artcam,type 3,etc |
|
collet |
ER25-32 |
|
Packing dimension |
3.1*2.1*1.82M |
|
weight |
1380kgs/1400kgs |
|
Standard equipment included |
1.automatic oil injection system
2.Tool sensor
3.vacuum table,5.5kw vacuum pump
4.whole set dust collector system |
