Main Features:
1. High precision and speed. Marking depth can be controlled easily. Continue working no need maintenance.
2.U.A.S imported RF tube together with high speed galvanometer and path expander fans system. stable path fast marking
3.SKD-CG economic design with glass CO2 tube .High power big working site with lower price.
4.Industry computer, strong anti-interference and adaptation stable working position for 24 working.
5.Red position system avoids material waste.
6.Multi-function software with friendly interface support win7/xp/2000 together with many languages version.
7.supporting bmp, jpg, gif, tga, png, tif file together with ai, dxf, dst, plt. Work on 256 level grey image. Image processing for grey conversion, black white conversion and dot.
Technical Parameter:
| Model |
SKD-C series |
SKD-CG Series |
| SKD30C / SKD55C |
50CG/60CG/ 80CG/100CG |
| Laser Power |
30W/55W/100W/150W RF Tube |
50W/60W/80W/100WGlass Tube |
| Working Area |
110*110mm/200*200mm/300*300mm |
| Laser Wavelength |
10.64μm |
| Response Time |
0.5ms |
| Frequency of Pulse |
20KHz |
| Max Marking Depth |
0-6mm |
| Marking Speed |
0-7000mm/s |
| Minimum Line Width |
0.1mm |
| Minimum Character |
0.3mm*0.3mm |
| Repeatability Accuracy |
±0.005mm |
| Resolution Ratio |
0.1mm |
| Graphic Format Supported |
bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc. |
| Unit Power |
≤2KW |
| Power |
220V/50Hz/10A |
Applications:

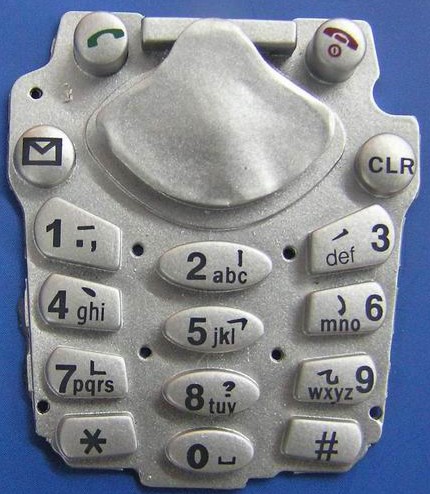

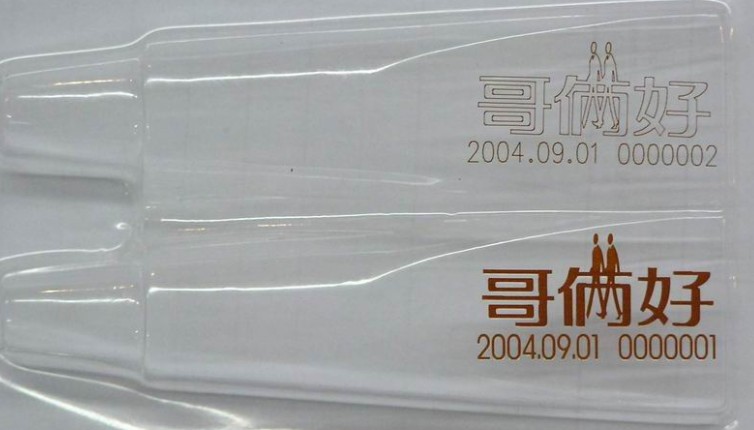

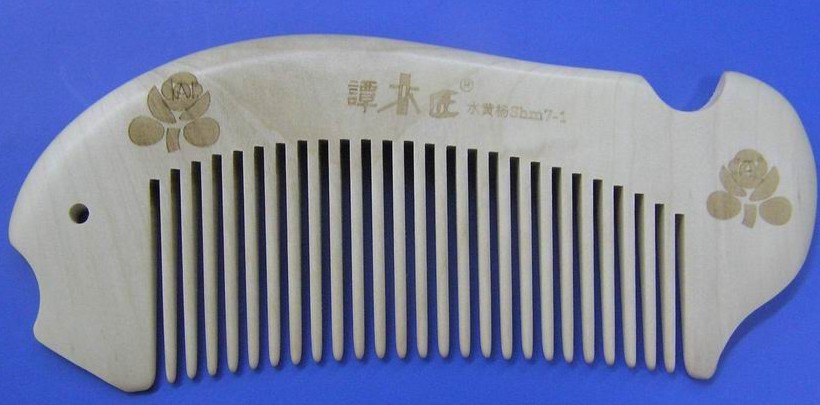

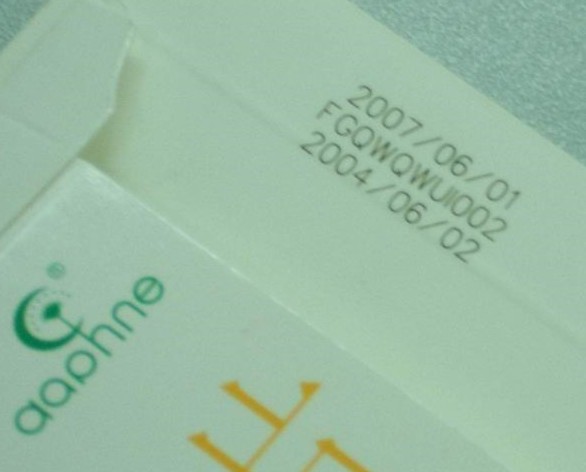

Craft gifts, furniture, leather garments, advertising signs, model making, food packaging, electronic components, pharmaceutical packaging, printing plate, shell plate and so on.
Leather, rubber, wood, bamboo products, organic glass, tile, plastic, marble, jade, crystal, cloth and other non-metallic materials.
