Main Features：
1.DSP offline work support,steel made new dargon gate,strong enough
2. X、Y axes transmission with gear rack, Z axis transmission with imported ball screws, ensures stable and smooth movement of the machine.
3. flat and rotary work ,two functions in one set,save cost and time
4. Applicatin of driver with high definition subdivision ensures fast speed and high accuracy.
5. High power spindle, brushless, water cooling/air cooling, working vigorously with low noise.
6. the Y adopt taiwan imported hiwin/pmi square rails,fast speed,high precision
7.strongest body structure,thicked wall never broken or damage
Technical Parameter:
|
Model |
SKW-1325NV / SKW-1325NV/SKW-1525NV etc |
|
X,Y,Z axis workin g area |
1300*2500*200mm |
|
Machine size |
3005*2100*1600mm |
|
X,Y movement |
Rack and pinion |
|
Z movement |
Ballscrew transmission |
|
Guide |
Taiwan HIWIN/PMI 20 square rails(round rails optional) |
|
Max idling speed |
40000mm/min |
|
Max engraving speed |
23000mm/min |
|
Spindle power |
3kw/4.5kw/6kw watercooling/aircooling (choose) |
|
Spindle speed |
18000-24000rpm |
|
inverter |
3.7KW/7.5KW(depend on spindle choose) |
|
Drive motors |
Stepper motors (servo motors and drviers optiona) |
|
drivers |
Leadshine |
|
Control system |
NC-Studio as standard/DSP |
|
Working voltage |
1220V/380V or customized |
|
Command code |
G code |
|
software |
Artcam,type 3,etc |
|
collet |
ER 25-32 |
|
Packing dimension |
3.1*2.1*1.82M |
|
weight |
1260kgs/1350kgs |
|
Standard equipment included |
1.automatic oil injection system
2.Tool sensor
3.vacuum table,5.5kw vacuum pump |
Applications:
Woodworking industry: wood crafts, picture frames cutting, handicraft carving wave plates, wooden door production and processing (density board and particieboard, sandwich plate, cutting, making violin surface, solid wood furniture, carved wood art murals carved, guide plate processing, avoid lacquer carved door, cabinet door, craft wooden door, wenqi door, screen, PP plate cutting, the process window processing, aluminum plate cutting, calligraphy carving made three-dimensional wave board processing, wooden door, screen, process window, small handicraft processing, large area of plate plane sculpture, secondary processing of various kinds of wooden products, furniture products.
Advertising industry: advertising materials such as PVC, acrylic, double color plate processing

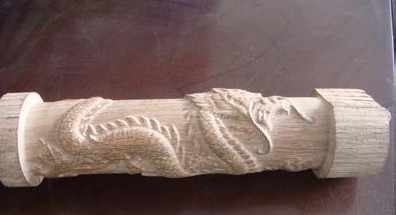

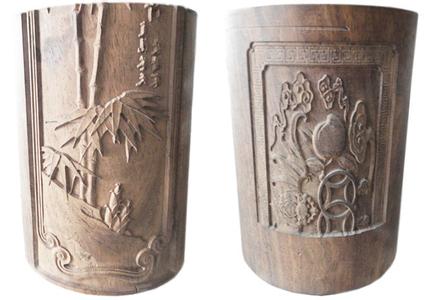

Rotary work samples:
