Main features:
1. taiwan imported syntec or LNC control system,LCD screen touch operate with easy learn,fully function,.
2..Italy imported HSD brand 9kw aircooling spindle,supply enough strong power,stably run and use,at the same time higher precision
3. japan imported yaskawa servo motors and drivers,high speed,long life and higher precision
4.big size gear rack keep the machine run stabely
5.Taiwan imported hiwin/pmi 25-30 square rails.
6.dust collect and vacuum table for optional choose
Technical Parameter:
|
Model |

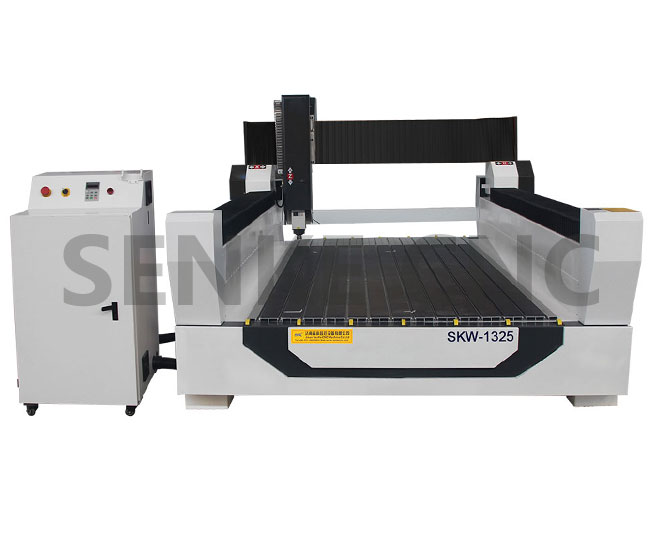

SKW-1325F/SKW-1530F/SKW-2030F etc |
|
X,Y,Z axis workin g area |
1300*2500*700mm |
|
X,Y movement |
Rack and pinion |
|
Z movement |
Ballscrew transmission |
|
Guide |
Taiwan HIWIN/PMI 25-30 square rails |
|
Max idling speed |
60000mm/min |
|
Max engraving speed |
30000mm/min |
|
Spindle power |
7.5kw spindle |
|
Spindle speed |
18000rpm |
|
inverter |
11kw |
|
Drive motors |
Japan Yaskawa servo motors |
|
drivers |
Servo drivers |
|
Control system |
Taiwan SYNTEC control |
|
Working voltage |
380V or customized |
|
Command code |
G code |
|
software |
Artcam,type 3,etc |
|
collet |
ER32-ER40 |
|
Standard equipment included |
1.automatic oil injection system
2.Tool sensor
|
Applicable industry:

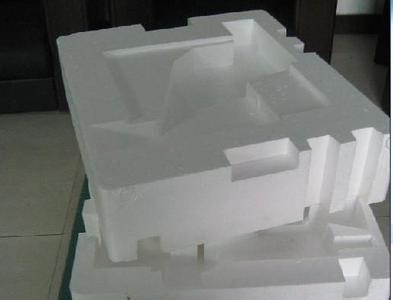

1 mould industry: carving various mould, such as auto mould, big ship foam block, aviation block, propellers, block the train.
2. Musical Instruments industry: can be carved large instruments 3 d surface, appearance cutting
