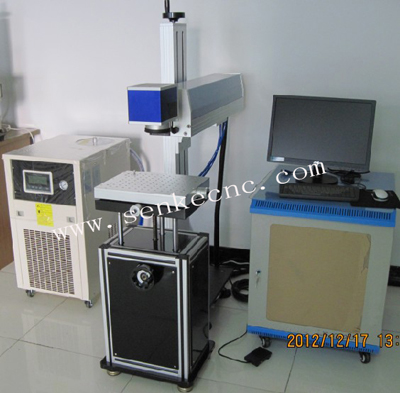

Main Features:
1. Wave length 1064 Yag crystal –top popular new style. Easy work on precision marking of metal and nonmetal.
2. International imported seal diode rods together with high-speed galvanometer and Q switch bring fast scanning speed and high accuracy.
3. Independent self-control cooling system for 24 hour working. Lowe noisy, temperature control.
4. Total sealing optical system .Red position signs avoid material waste.
5. Multi-function software with friendly interface support win7/xp/2000. Supporting True Type font and single line font JSP, DMF, One-dimensional code and VIN code.
6. supporting bmp, jpg, gif, tga, png, tif file together with ai, dxf, dst, plt. Work on 256 level grey image. Image processing for grey conversion, black white conversion and dot.
Technical Parameter:
|
Model |
SKD-50Y /SKD-75Y/SKD-100Y |
|
Laser Power |
50W/75W/100W |
|
Repeatability |
≤50KHz |
|
Laser Wavelength |
1064nm |
|
Marking Range |
110*110mm(standard adopt)/200*200mm/300*300mm |
|
Marking Speed |
10000mm/s(300 Characters/s,1mm/Character High 1mm) |
|
Engraving Depth |
≤0.5mm |
|
Min-laser Beam |
0.015mm |
|
Smallest Character Engraving |
0.15mm |
|
Repeatability Accuracy |
±0.01mm |
|
Light Quality |
㎡≤3 |
|
Indicate Laser |
LD Red Point：＜5mW |
|
Power |
220V(±10%)/50Hz/15A |
|
Unit Power |
2.5kw |
|
Graphic Format Supported |
bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc. |
|
/Working Condition: Temperature |
10℃-40℃ |
|
Net Weight |
225kg |
|
Packing Size |
890*930*780mm |

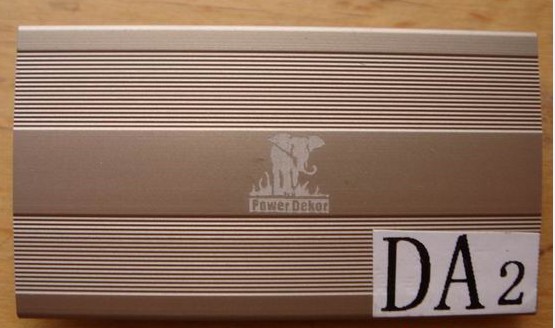

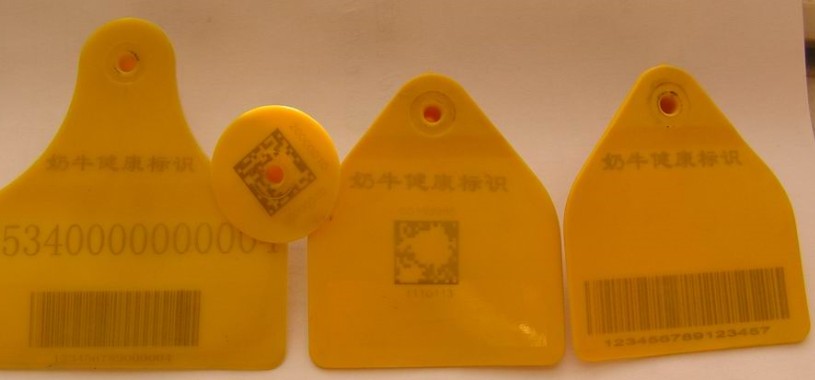

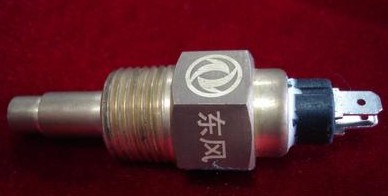

Applications:
Applied to electronic components, integrated circuits (IC), electrical appliances, mobile communications, hardware, tools, accessories, precision instruments, eyeglasses and clocks, jewelry jewelry, auto parts, plastic buttons, construction material, PVC pipe, medical equipment, etc.Metals and alloys (iron, copper, aluminum, magnesium, zinc and all other metals), rare metals and alloys (gold, silver, titanium), metal oxides (metal oxide may be), special surface treatment (Phosphating, aluminum anodizing, electroplating the surface), ABS material (electrical appliances shell, daily necessities), ink (translucent keys, print products), epoxy resin (electronic components, packaging, insulation layer).etc
