Features：
1.DSP A18 control,4 axis move together!
2. X、Y axes transmission with gear rack, Z axis transmission with imported ball screws, ensures stable and smooth movement of the machine.
3. HQD/HSD aicooling spindle,strong power,suitable for cutting work needed
4. Applicatin of driver with high definition subdivision ensures fast speed and high accuracy.
5. High power spindle, brushless, water cooling/air cooling, working vigorously with low noise.
6. the Y adopt taiwan imported hiwin/pmi square rails,fast speed,high precision
7.strongest body structure,thicked wall never broken or damage
Technical Parameter:
|

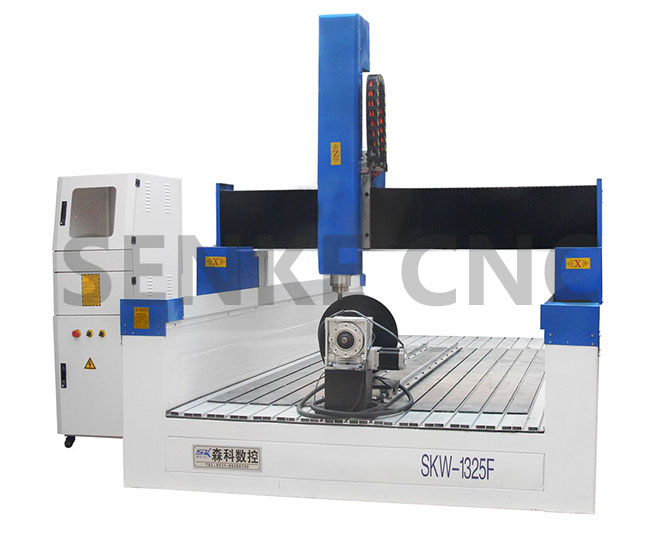

Model |
SKW-1325F |
|
Working area (X*Y*Z) |
1300*2500*500mm |
|
Body structure |
seamless welded steel
structure,PVC t-slot table |
|
X, Y Structure |
rack and pinion transmission,
Taiwan hiwin square rails |
|
Z Structure |
Taiwan original TBI ball screw |
|
Max Moving Speed |
35000mm/min |
|
Max Engraving Speed |
24000mm/min |
|
XYZ traveling positioning accuracy |
±0.01mm |
|
Spindle power |
3.2KW water cooling
/3.5KW aircold spindle
(4.5KW/ 5.5KW/ 6KW/9KW Optional) |
|
Spindle Speed |
0-24,000rpm |
|
Inverter |
Fuling Inverter
(Delta Inverter Optional) |
|
Voltage |
380V/415V 3 Phase
50/60Hz(Optional:220V
Single/3 Phase 50/60Hz
or 110V Single Phase 50/60Hz ) |
|
Drive type |
stepper motors& leadshine
drivers(leadshine/YASKAWA
servo optional) |
|
Working Dictate |
G Code |
|
Operating system |
NC-studio (DSP A11 Control
System/Mach3 control
system optional) |
|
software |
Artcam(Type 3/ JDpaint
optional) |
|
Tool sensor |
Yes,included |
|
Auto oil lubricator |
Yes,included |
|
Running Environment |
Temperature: 0℃~45℃ |
|
Relative humidity |
30%-75% |
|
Package size |
3.73*2.2*1.89M |
|
G.W |
1280KGS |
|
Model |
SKW-1325F |
|
Working area (X*Y*Z) |
1300*2500*500mm |
|
Body structure |
seamless welded steel
structure,PVC t-slot table |
|
X, Y Structure |
rack and pinion transmission,
Taiwan hiwin square rails |
|
Z Structure |
Taiwan original TBI ball screw |
|
Max Moving Speed |
35000mm/min |
|
Max Engraving Speed |
24000mm/min |
|
XYZ traveling positioning accuracy |
±0.01mm |
|
Spindle power |
3.2KW water cooling
/3.5KW aircold spindle
(4.5KW/ 5.5KW/ 6KW/9KW Optional) |
|
Spindle Speed |
0-24,000rpm |
|
Inverter |
Fuling Inverter
(Delta Inverter Optional) |
|
Voltage |
380V/415V 3 Phase
50/60Hz(Optional:220V
Single/3 Phase 50/60Hz
or 110V Single Phase 50/60Hz ) |
|
Drive type |
stepper motors& leadshine
drivers(leadshine/YASKAWA
servo optional) |
|
Working Dictate |
G Code |
|
Operating system |
NC-studio (DSP A11 Control
System/Mach3 control
system optional) |
|
software |
Artcam(Type 3/ JDpaint
optional) |
|
Tool sensor |
Yes,included |
|
Auto oil lubricator |
Yes,included |
|
Running Environment |
Temperature: 0℃~45℃ |
|
Relative humidity |
30%-75% |
|
Package size |
3.73*2.2*1.89M |
|
G.W |
1280KGS |
Applications:
Woodworking industry: wood crafts, picture frames cutting, handicraft carving wave plates, wooden door production and processing (density board and particieboard, sandwich plate, cutting, making violin surface, solid wood furniture, carved wood art murals carved, guide plate processing, avoid lacquer carved door, cabinet door, craft wooden door, wenqi door, screen, PP plate cutting, the process window processing, aluminum plate cutting, calligraphy carving made three-dimensional wave board processing, wooden door, screen, process window, small handicraft processing, large area of plate plane sculpture, secondary processing of various kinds of wooden products, furniture products.
Advertising industry: advertising materials such as PVC, acrylic, double color plate processing
