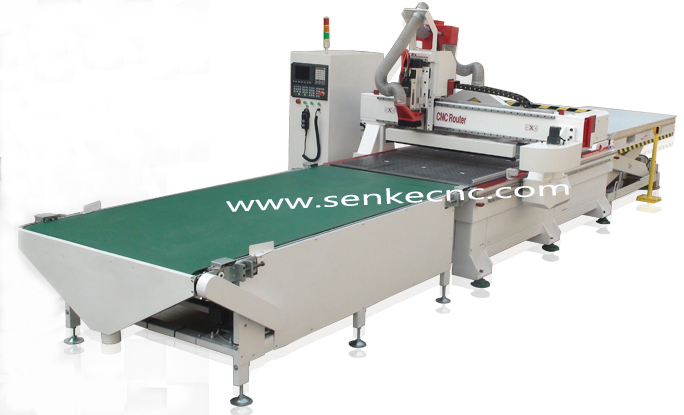

Main Features：
1. The steel welding bed is strong and without distortion.
2. X、Y axes transmission with gear rack, Z axis transmission with imported ball screws, ensures stable and smooth movement of the machine.
3. Double motors and drivers of Y axis ensure steady movement.
4. Applicatin of driver with high definition subdivision ensures fast speed and high accuracy.
5. High power spindle, brushless, water cooling/air cooling, working vigorously with low noise.
6. the Y adopt taiwan imported hiwin/pmi square rails,fast speed,high precision.
|
Model |
SKW-1325Z/SKW-1530Z/SKW-1540Z etc,as user customized |
|
X,Y,Z axis workin g area |
1300*2500*200mm |
|
Machine size |
2100*3005*1600 |
|
X,Y movement |
Rack and pinion |
|
Z movement |
Ballscrew transmission |
|
guide |
Taiwan HIWIN/PMI 20 square rails |
|
Max idling speed |
40000mm/min |
|
Max engraving speed |
20000mm/min |
|
Spindle power |
3kw/4.5kw/6kw watercooling/aircooling (choose) |
|
Spindle speed |
24000rpm |
|
inverter |
Fuling2.2kw/ 3.7kw/7.5kw(depend on spindle choose) |
|
Drive motors |
Stepper motor (servo motors optional) |
|
drivers |
Stepper drivers or servo drivers |
|
Control system |
LNC/NC-STDUIO (dsp optional) |
|
Working voltage |
220V/380V or customized |
|
Command code |
G code |
|
software |
Artcam,type 3,etc |
|
collet |
ER 25-ER32 |
|
Packing dimension |
3.1*2.1*1.82M |
|
weight |
1200kgs |
|
Standard equipment included |
1.automatic oil injection system
2.Tool sensor
3.T-SLOT table with mechanical clamps |
