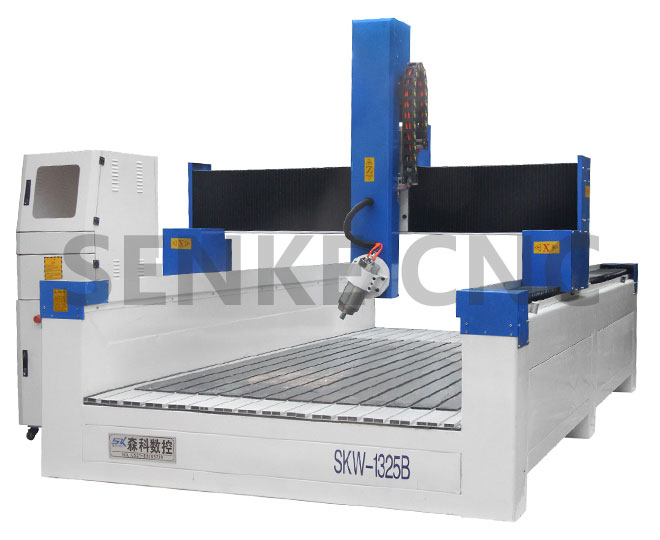

4 axis cnc router with spindle 180 swing

Main Features:
1.Mach 3 control steel made new dargon gate,strong enough
       2. X、Y axes transmission with gear rack, Z axis transmission with imported ball screws, ensures stable and smooth movement of the machine.
       3. HQD/HSD aicooling spindle,strong power,suitable for cutting work needed
       4. Applicatin of driver with high definition subdivision ensures fast speed and high accuracy.
       5. High power spindle, brushless, water cooling/air cooling, working vigorously with low noise.
6. the Y adopt taiwan imported hiwin/pmi square rails,fast speed,high precision
7.strongest body structure,thicked wall never broken or damage
Technical Parameter:

Model
SKW-1325B/SKW-1530B/SKW-2030B
etc,as user customized
Working area (X*Y*Z)
1300*2500*600mm
Body structure
seamless welded steel
structure,PVC t-slot table
X, Y Structure
rack and pinion transmission,
Taiwan hiwin square rails
Z Structure
Taiwan original TBI ball screw
Max Moving Speed
35000mm/min
Max Engraving Speed
24000mm/min
XYZ traveling positioning accuracy
±0.01mm
Spindle power
3.2KW water cooling /3.5KW
aircold spindle(4.5KW/
5.5KW/ 6KW/9KW Optional)
Spindle Speed
0-24,000rpm
Inverter
Fuling Inverter
(Delta Inverter Optional)
Voltage
380V/415V 3 Phase 50/60Hz
(Optional:220V Single/3 Phase 50/60Hz
or 110V Single Phase 50/60Hz )
Drive type
stepper motors& leadshine drivers
(leadshine/YASKAWA servo optional)
Working  Dictate
G Code
Operating system
4 Axis use Mach 3(DSP A11
Control System/NC-studio
control system optional)
software
Artcam(Type 3/ JDpaint optional)
Tool sensor
Yes,included
Auto oil lubricator
Yes,included
Running Environment
Temperature: 0℃~45℃
Relative humidity
30%-75%
Package size
3.67*2.26*2.15M
G.W
1380KGS
Model
SKW-1325B
Working area (X*Y*Z)
1300*2500*600mm
Body structure
seamless welded steel
structure,PVC t-slot table
X, Y Structure
rack and pinion transmission,
Taiwan hiwin square rails
Z Structure
Taiwan original TBI ball screw
Max Moving Speed
35000mm/min
Max Engraving Speed
24000mm/min
XYZ traveling positioning accuracy
±0.01mm
Spindle power
3.2KW water cooling /3.5KW
aircold spindle(4.5KW/
5.5KW/ 6KW/9KW Optional)
Spindle Speed
0-24,000rpm
Inverter
Fuling Inverter
(Delta Inverter Optional)
Voltage
380V/415V 3 Phase 50/60Hz
(Optional:220V Single/3 Phase 50/60Hz
or 110V Single Phase 50/60Hz )
Drive type
stepper motors& leadshine drivers
(leadshine/YASKAWA servo optional)
Working  Dictate
G Code
Operating system
4 Axis use Mach 3(DSP A11
Control System/NC-studio
control system optional)
software
Artcam(Type 3/ JDpaint optional)
Tool sensor
Yes,included
Auto oil lubricator
Yes,included
Running Environment
Temperature: 0℃~45℃
Relative humidity
30%-75%
Package size
3.67*2.26*2.15M
G.W
1380KGS
