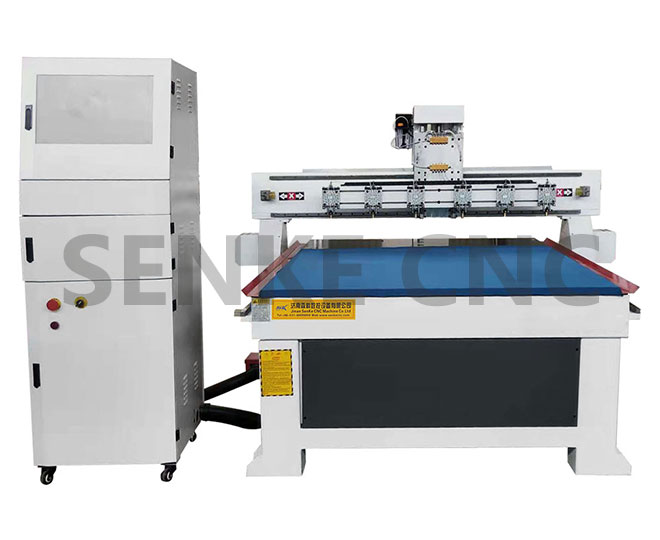

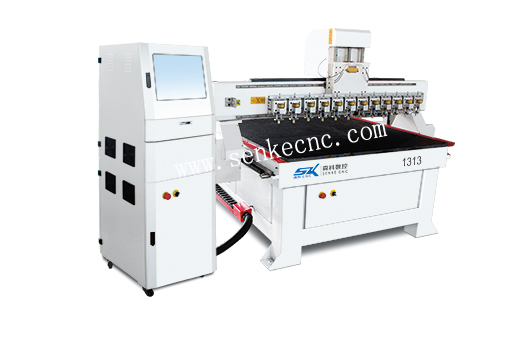

1mm,2mm,3mm,4mm till 19mm glass mirror cutting machine

Technical Parameter:





Model

SKQ-1313-12

X,Y,Z axis workin g area

1300*1300*150mm

X,Y movement

Rack and pinion

Z movement

Ballscrew transmission

guide

Taiwan HIWIN/PMI 20 square rails

Max idling speed

40000mm/min

Max engraving speed

20000mm/min

heads

As needed

Drive motors

Stepper motor (servo motors optional)

drivers

Stepper drivers or servo drivers

Control system

NC-STDUIO (dsp optional)

Working voltage

220V/380V or customized

Command code

G code

software

Artcam,type 3,etc

Packing dimension

2*2*1.78M

weight

870kgs
