Description

Parameter

Marking Range

SKP series

SKP series

SKP Series

customized

Marking style

Adopt pneumatic

Marking speed range

10~130 words/min

Marking depth range

0.05 ~ 1.2mm(depend on materials)

Compressed air pressure required

0.4～0.75Mpa

System functions

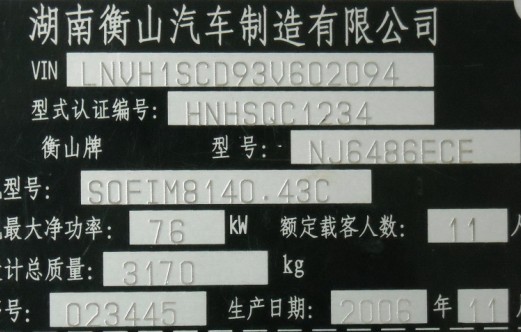

Mark character input, editing, marking;VIN code automatically calculated, setting, marking;

Serial number setting, automatically increase, marking;

Tag data query, reporting, print;

Characters, graphics, patterns,Chinese character editing

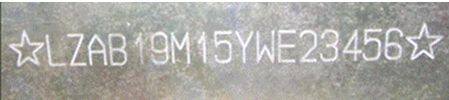

Dot matrix mark

Marking direction

up,down,lefe,right,radian

Input style

Manual/scan

Analogue display

Screen Preview

Marked Font size

Arbitrary adjustable

Tag character content

0 ~ 9 figures, A ~ Z large, lowercase letters Graphics, patterns,characters (users can be random homemade)

Operating voltage

Control cabinet ~ 220V 50Hz ± 10%

Machine power:

≤　180W　

Work Environment

Temperature: -10 C ° ~ +40 C ° Humidity: ≤ 80% room

Safety

Insulation resistance:Normal atmospheric pressure≥5MΩ/500V

Leakage Curren

≤0.75Ma
