Features:

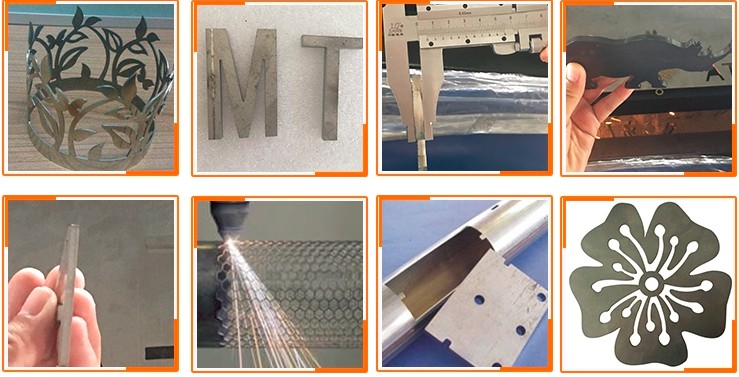

1. High accuracy for high precision parts and letter cutting.
2. Fast speed: 100 times speed than wire cutting.
3. Small hot affecting area keeps flat and nice cutting line.
4. High performance to price ratio: the price is only 1/3 of that of CO2 laser cutter and 2/5 of that of CNC.
5. Low maintenance cost: only 1/10~1/15 of same power CO2 laser cutting machine, only 1/3~1/4 of same power.
6. Top Best stable performance fiber module.
TECHNICAL PARAMETERS：
|
Model |

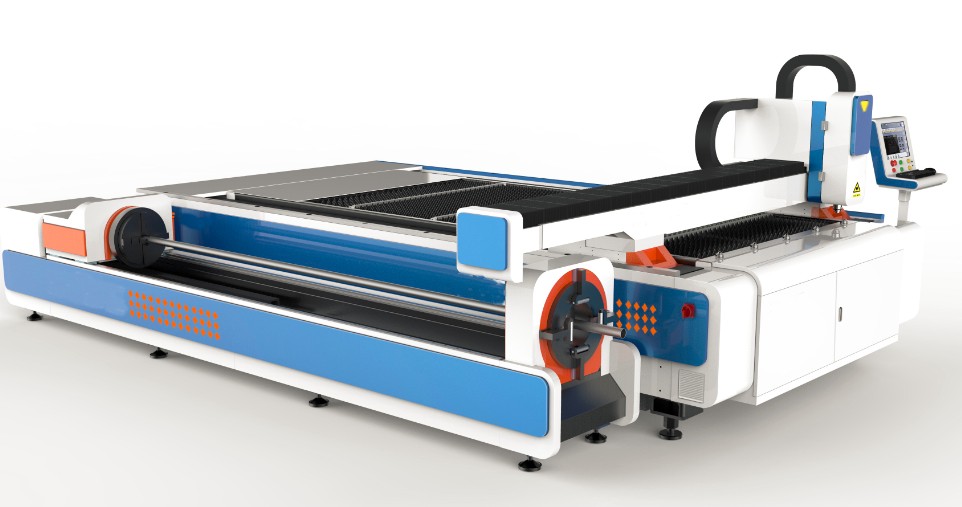

Fiber Metal Cutting Machine
SKL500W/750W/1000W/1500W/2000W |
|
Output Power |
500W/750W/1000W/1500W/2000W |
|
Laser Type |
Fiber Laser |
|
Max. Processing Area |
1300*2500MM |
|
Max. Cutting Speed |
30m/min |
|
Max. No-load Speed |
60m/min |
|
Max. Cutting Thickness |
6mm |
|
Cutting Seam Width |
0.10(depend on the material) |
|
X/Y Axis Positioning Accuracy |
0.01mm/m |
|
X/Y Axis Repeated Positioning Accuracy |
+0.01mm |
|
Machine Weight |
3600kg |
|
Phase |
3 |
|
Rated Voltage |
380V |
|
Frequency |
50HZ |
|
Total Power Protection Grade |
IP54 |
