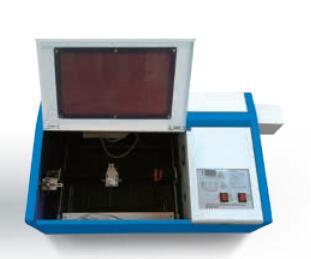

mini stamp laser engraving machine
Technical Parameter:
|
Model |
SKL-2030 |
SKL-3030 |
Option |
|
Working Area |
200*300mm |
300*300mm |
According to Demands |
|
Laser Power |
40W/50W/60W |
|
Laser Type |
CO2 Sealed Laser Tube, 10.6μm |
|
Cooling Type |
Water Cooling |
|
Engraving Speed |
0-60000mm/min |
|
Cutting Speed |
0-40000mm/min |
|
Laser Output Control |
(0-100% Set by Software ) |
|
Min. Engraving Speed |
Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm |
|
Highest Scanning Precision |
4000DPI |
|
Locating Precision |
≤+0.01mm |
|
Controlling Software |
DSP Control System |
|
Graphic Format Supported |
DST PLT BMP DXF DWG AI LAS,etc |
|
Compatible Software |
TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,etc |
|
Color Separation |
Yes |
|
Drive System |
High-precision 3-phase Stepper Motor |
|
Auxiliary Equipments |
Exhaust Fan and Air Exhaust Pipe |
|
power Supply |
AC110V/220V+10%,50HZ/60HZ |
|
Working Environment |
Temperature:0-45℃,Humidity 5-95%(No Condensate Water) |
|
Optional Spare Parts |
Honeycomb Worktable, Rotary Device,Auto-focus Device | |
|
