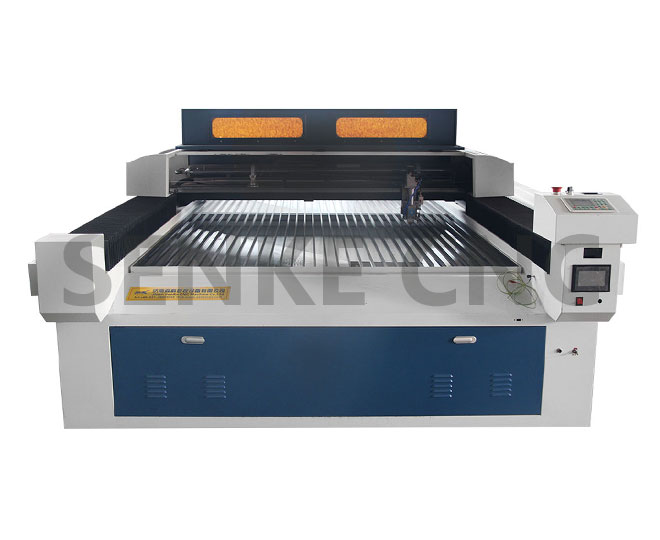

Main Features:
1. with HIWIN high accuracy square rail, perfect performance.
2. High efficiency tube with stable laser path,
3. Red cross point offers highest accuracy position.
4. Professional motion control card offers continue fast curve cutting together with shortest path selection. Shorten work time.
|
Model |
SKLM-9013 |
SKLM-1414 |
SKLM-1325 |
Option |
|
Working Area |
900*1300mm |
1400*1400mm |
1300*2500mm |
According to Demands |
|
Laser Power |
150w/180w/200w/260w |
|
Laser Type |
CO2 Sealed Laser Tube , 10.6μm |
|
Cooling Type |
Water Cooling |
|
Engraving Speed |
0-60000mm/min |
|
Cutting Speed |
0-40000mm/min |
|
Laser Output Control |
0-100% set by software |
|
Min. Engraving Size |
Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm |
|
Highest Scanning Precision |
4000DPI |
|
Locating Accuracy |
≤+0.01mm |
|
Controlling Software |
DSP Control System |
|
Graphic Format Supported |
DST PLT BMP DXF DWG AI LAS,etc |
|
Compatible Software |
CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc. |
|
Color Separation |
Yes |
|
Drive System |
High-precision 3-phase Stepper Motor |
|
Auxiliary Equipments |
Exhaust Fan and Air Exhaust Pipe |
|
Power Supply |
AC110V/220V+10%,50HZ/60HZ |
|
Working Environment |
Temperature:0-45C,Humidity 5-95%(No Condensate Water) |
