Features:
1.adopt150W,180W,200W,280w,300W laser power,helping with oxygen,suitable for all kinds of non-metal and metals materials engrave and cut,one machine double use
2.ruida professional control system,with up-down laser head,measure the focus automaticlly.
3.Extensive material processing, smooth cutting edge and burr-free, avoid polishing, Processing high speed, high precision, less waste, high efficiency.
4..Suitable for large and medium-sized enterprises in the mass production,.
5.Operational speed, laser energy real-time tunable, and very easy for customers to operate
TECHNICAL PARAMETERS：
|
Model |
SKLM-9013/SKLM-1325/SKL-1530(size as needed) |
|
Working area (X*Y*Z) |
900*1300mm/1300*2500mm/1500*3000mm |
|
Table size |
1750*3050*1450mm(1325 as sample) |
|
rails |
Taiwan hiwin/pmi square rails |
|
Moving Speed |
90000mm/min |
|
Engraving Speed |
70000mm/min |
|
XYZ traveling positioning accuracy |
±0.01mm |
|
XYZ repositioning accuracy |
±0.01mm |
|
laser power |
150W/180w/200W/280W /300Was needed |
|
Voltage |
220v/50hz+-10% |
|
![]() Drive type
|
Stepper motors and drivers |
|
Interface |
USB |
|
Graphic format |
PLT,DXF,AI,DST,DSB,JPG,BMP,GIF,ETC |
|
controller |
RUIDA controller |
|
Laser head |
Metal professionl use laser head |
|
Running Environment |
Temperature: 0℃～45℃ |
|
package |
Export wooden box |
|
After packed size |
3.7*2.1*1.78M(1325 size) |
|
G.W |
1000kgs(1325 size) |

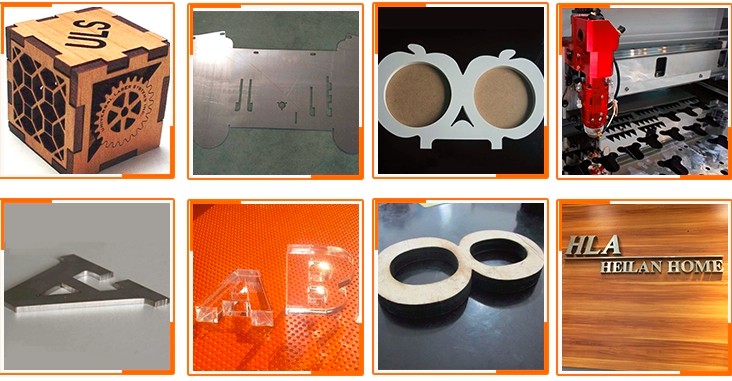

samples:
