SKQ.45 is
The CNC cutting machine independently developed and produced by Senke Company, is specially used for small-sized glass mirror (flat glass mirror, concave rear-view mirror for car, electric vehicle, motorcycle , magnifiers, etc.) . The machine only 0.5CBM, small volume,High speed and high precision, and equipped with automatic oil filling system of cutter wheels (reducing edge chipping during glass cutting and prolonging knife life), pressure adjustment system (can adapt to different thicknesses of glass), one-button start and stop functions ( Fast operation), the best choice for small size glass cutting.
Main feature:
1. transmission with ball screws,keeping high precision and working stably
2. T-slot table with hiwin square rails suitable for all kinds of materials
3.table move with the most highest working precison,at the sam time,the LED light support day and night work
4. Optimized mechanical and electrical design with well-selected brand parts minimizes breakdown rate.
5. Adpot advanced cnc system,configured with practical and easy-learned software,can conveniently check the moving path of tool,and adjust the processing depth of Z axis and the speed of motor
Technical Parameter:
|
Model |
SKQ .45 |
|
Working area (X*Y) |
450*450mm |
|
Glass thickness |
1-19mm |
|
Cutting speed |
0-35m/min |
|
Automatic oil filling of cutter wheel |
Yes |
|
pressure regulation |
Yes |
|
External button start/stop |
Yes |
|
System Support |
Windows ALL(7-8-10-11) |
|
Format support |
Direct import of （dxf，dwg, ai .etc） files without generating code |
|
Laptop/PC |
both |
|
system language |
CN/EN/ES/PT Other Support customization |
|
Voltage |
110V/220v/single phase |
|
System |
senke professional glass cutting system |
|
Bare metal size |
820*730*600mm |
|
After packed size |
900*810*780mm |
|
N.W |
82kg |
|
G.W |
106kg |

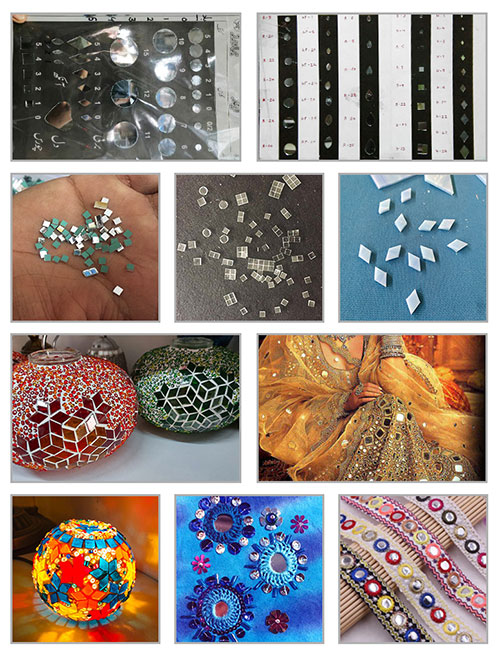

Samples:
