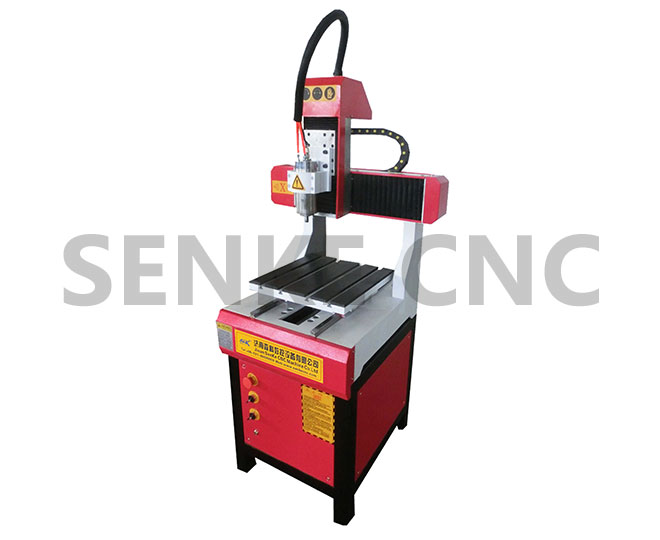

Main feature:
1. transmission with Gemany/taiwan ball screws,keeping high precision and working stably
2. T-slot table,suitable for all kinds of materials
3.with wate tank etc watercoolin system,suitable for both metals and non-metals materials
4.table move with the most highest working precison,at the sam time,the LED light support day and night work
5. Optimized mechanical and electrical design with well-selected brand parts minimizes breakdown rate.
6. Adpot advanced cnc system,configured with practical and easy-learned software,can conveniently check the moving path of tool,and adjust the processing depth of Z axis and the speed of motor
Technical Parameter:
|
Model |
SKA-3636 |
|
X/Y/Z working size |
360*360*80mm |
|
Spindle power |
800W/1.5KW/2.2kw water cooling(choose) |
|
Spindle speed |
0-24,000rpm |
|
X/Y/Z movement |
Taiwan/Germany ball screw |
|
X, Y Resolution |
＜0.05mm |
|
Max moving speed |
12,000mm/min |
|
Max engraving speed |
8,000mm/min |
|
Drive type |
Stepper |
|
Inverter power |
1.5KW |
|
Working voltage |
220V/50Hz/60Hz or 380v/50HZ/60HZ,or customized |
|
Working Dictate |
G-code |
|
Operating system |
NC-studio control ( DSP optional ) |
|
Software |
Artcam/Type 3 |
|
Table type |
T-slot table |
|
Interface |
USB |
|
|
Flash Memory |
128M |
|
Packing size (L*W*H) |
89*90*85CM |
|
Gross weight |
140KGS |
Applications:
can be used for advertisement engraving and cutting, stone processing, mold manufacturing, wood processing, craft manufacturing, light box cutting, building model cutting, indoor decoration cutting, light equipment mold processing, sign and mark manufacturing, acrylic board processing,Acryl ,wood,at the same time,all kinds of metals,such as aluminum,copper,brass,steels etc etc
