Main features:
1. ball screws transmission ,Y optional square rails.
2. Solid gantry, well structure of lathe bed,stable lathe table.
3. Application of driver with high definition and subdivision ensures fast speed and high accuracy.
4. High-speed spindle with water cooling system works vigorously with low noise,guarantee long time mass processing.
5. Optimized mechanical and electrical design with well-selected brand parts minimizes breakdown rate.
6. Adpot advanced cnc system,configured with practical and easy-learned software,can conveniently check the moving path of tool,and adjust the processing depth of Z axis and the speed of motor
Technical Parameter:
|

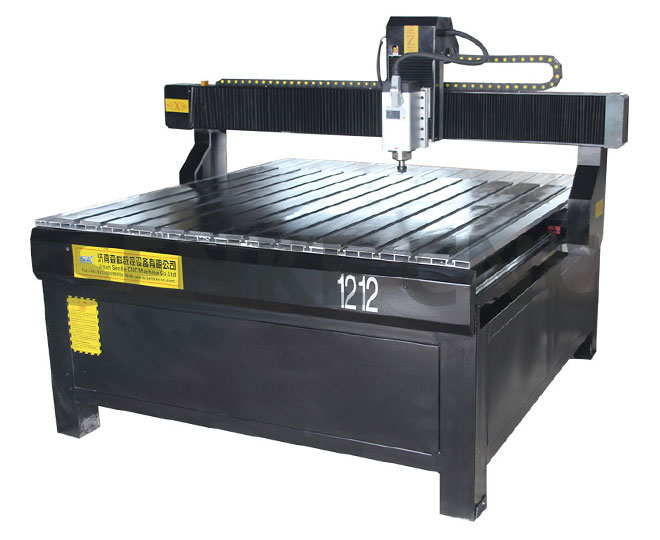

Model |
SKA-1212 |
SKA-1218 |
|
X/Y/Z working size |
1200*1200*150mm |
1200*1800*150mm |
|
Table size |
1750*1520*1400mm |
1750*2520*1400mm |
|
Spindle power |
1.5KW/2.2KW/3.0KW water cooling (choose) |
|
Spindle speed |
0-24,000rpm |
|
X/Y/Z movement |
Taiwan/Germany ball screw |
|
X, Y Resolution |
＜0.05mm |
|
Max moving speed |
18,000mm/min |
|
Max engraving speed |
10,000mm/min |
|
Drive type |
Stepper (servo optional) |
|
Inverter power |
1.5KW/2.2kw/3.7kw(depend on spindle choose) |
|
Working voltage |
AC220V/50Hz/60Hz |
|
Working Dictate |
G-code |
|
Operating system |
NC-studio control ( DSP optional ) |
|
Software |
Artcam/Type 3 |
|
Table type |
T-slot table |
|
Collect |
ER20-25 |
|
Interface |
USB |
|
Flash Memory |
128M |
|
Packing size (L*W*H) |
1.92*1.92*1.71M |
2.5*1.6*1.73M |
|
Gross weight |
500kgs |
550kgs |
Applications:
can be used for advertisement engraving and cutting, stone processing, mold manufacturing, wood processing, craft manufacturing, light box cutting, building model cutting, indoor decoration cutting, light equipment mold processing, sign and mark manufacturing, acrylic board processing,Acryl ,wood,aluminum etc.
