1. watercooling and aircooling spind for chooise.
2.Y-axis adopts double motors to ensures stable operation
3.Highly accurate Rack Rail travel method with high speed
4.The unique calculating system realizes speedy, accurate, curvy operation
Techncial parameters:
|
Discription |
Parameter |
|
SKW-1530 |

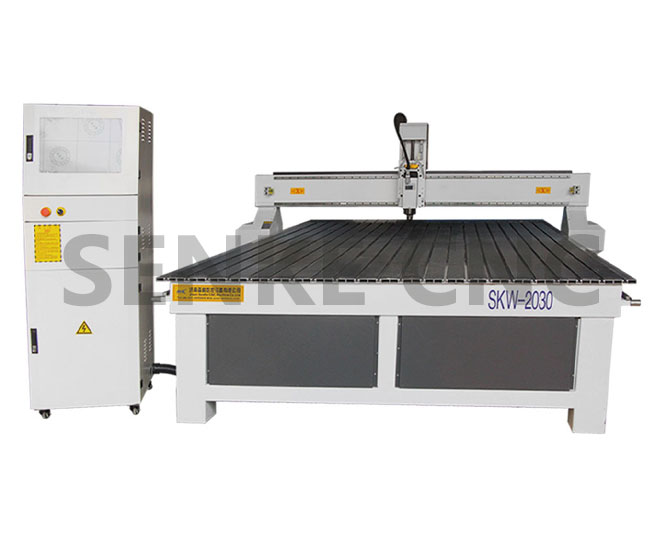

SKW-2030 |
SKW-2040 |
Option |
|
Working Area (X*Y*Zmm) |
1500*3000*200mm |
2000*3000*200mm |
2000*4000*200mm |
Sizes
customized |
|
Body structure |
Steel tubes |
|
X, Y Structure |
rack and pinion drive |
|
Z Structure |
Ball Screw/option gear wheel |
|
X, Y Resolution |
<0.01mm |
|
Max Moving Speed |
60000mm/min |
|
Max Engraving Speed |
40000mm/min |
|
Spindle power |
3kw/4.5kw/5.5KW/8KW(can be choices) |
|
Spindle Speed |
6000-24,000rpmrpm |
|
Table style |
Fixture/option vacuum table |
|
Dust collection |
Can add or not |
|
Voltage |
AC220V/50Hz |
|
Drive type |
Stepper/Option:servo |
|
Working Dictate |
G Code ,HPGL |
|
Operating system |
Dsp System/option syntec or LNC |
|
Interface |
USB |
|
Flash memory |
128M(U Disk) |
|
Software Compatability |
Type3/Ucancam Artcam |
|
Running Enviroment |
Temperature: 0℃～45℃ |
Applicable industry
Wood industry, furniture, woodworker, relief; Advertising industry, breastplate, footplate; Art-craft industry, double-color board, bamboo crafts
Applicable material
Wood, organic glass, PVC board, KT board, Acryl, etc
