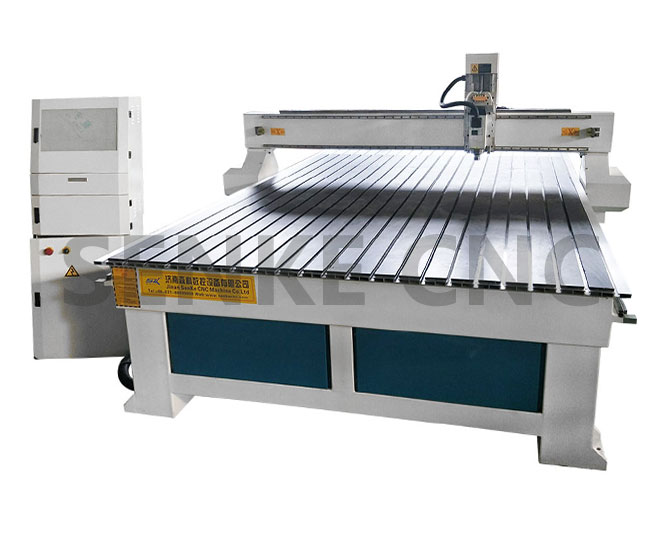

Features：
1.Welded structure by thick profiled steel stabilized under high temperature, ensures ,minimum distortion, excellent rigidity and powerful strength
2.adopt domestic water cooling spindle of big power(option:air cooling spindle)
3.high accuracy, long service time, steady movement and good starting performance, great torque, fulfilling the advantage of working with fast speed and low noise.
Techncial parameters:
|
Discription |
Parameter |
|
SKW-1325 |
SKW-1530 |
SKW-2040 |
Option |
|
Working Area (X*Y*Zmm) |
1300*2500*200mm |
1500*3000*200mm |
2000*4000*200mm |
Sizes
customized |
|
Body structure |
Steel tubes |
|
X, Y Structure |
rack and pinion drive |
|
Z Structure |
Ball Screw/option gear wheel |
|
X, Y Resolution |
<0.01mm |
|
Max Moving Speed |
50000mm/min |
|
Max Engraving Speed |
30000mm/min |
|
XYZ traveling positioning accuracy |
<0.03/300mm |
|
XYZ repositioning accuracy |
<0.01mm |
|
Spindle power |
3kw/4.5kw/5.5KW/7KW(can be choices) |
|
Spindle Speed |
6000-18,000rpmrpm |
|
Table style |
Fixture/option vacuum table |
|
Dust collection |
Can add or not |
|
Voltage |
AC220V/50Hz |
|
Drive type |
Stepper/Option:servo |
|
Working Dictate |
G Code ,HPGL |
|
Operating system |
Dsp System/option syntec or LNC |
|
Interface |
USB |
|
Flash memory |
128M(U Disk) |
|
Software Compatability |
Type3/Ucancam Artcam |
|
Running Enviroment |
Temperature: 0℃～45℃ |
Applicable industry

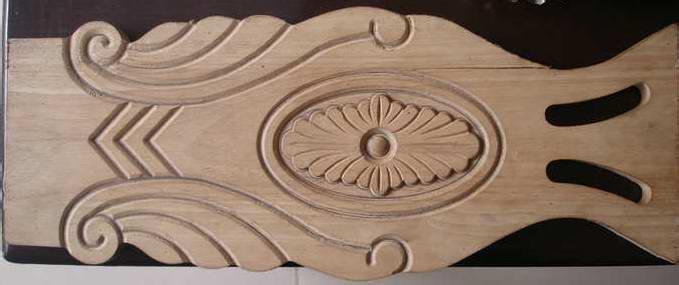

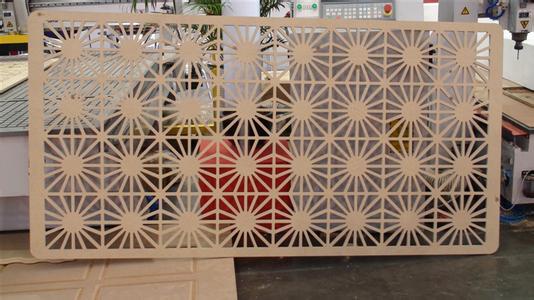

Wood industry, furniture, woodworker, relief; Advertising industry, breastplate, footplate; Art-craft industry, double-color board, bamboo crafts
Applicable material
Wood, organic glass, PVC board, KT board, Acryl, etc.
