Features:

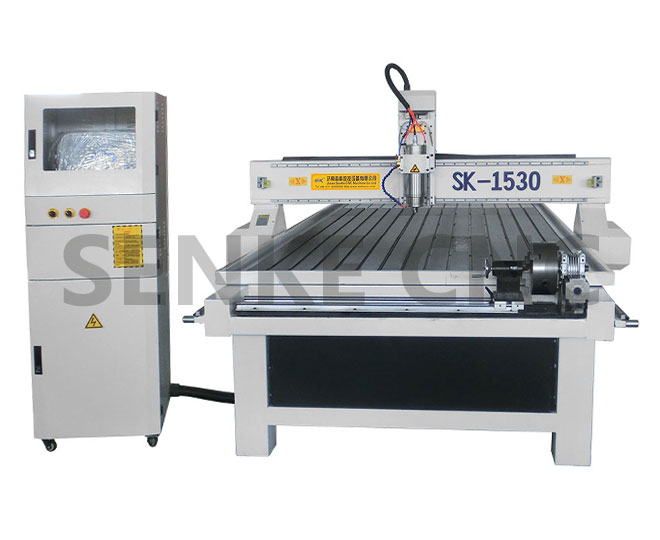

1.Integrally cast lathe bed, and rotary added outside,can done both flat and rotary work.
2. Unique multi-spindle design, quantity of machine heads and power of spindle can be selected according to the customer's requirements,The distance between spindles can be freely adjusted according to the work piece being processed.
3 One machine can complete the workload of several machines at the same time, saving production time and cost, enhancing the working efficiency
Techncial parameters:
|
Discription |
Parameter |
|
SKW-2025 |
SKW-2030 |
SKW-2040 |
Option |
|
Working Area (X*Y*Zmm) |
2000*2500*200mm |
2000*3000*200mm |
2000*4000*200mm |
Sizes
customized |
|
Body structure |
Steel tubes |
|
X, Y Structure |
rack and pinion drive |
|
Z Structure |
Ball Screw/option gear wheel |
|
X, Y Resolution |
<0.01mm |
|
Max Moving Speed |
32000mm/min |
|
Max Engraving Speed |
20000mm/min |
|
XYZ traveling positioning accuracy |
±0.03/300mm |
|
Rotary device |
added |
|
Spindle power |
3kw/4.5kw/5.5KW/8KW(can be choices) |
|
Spindle Speed |
6000-18,000rpmrpm |
|
Table style |
Fixture/option vacuum table |
|
Dust collection |
Can add or not |
|
Voltage |
AC220V/50Hz |
|
Drive type |
Stepper/Option:servo |
|
Working Dictate |
G Code ,HPGL |
|
Operating system |
Dsp System/option syntec or LNC |
|
Interface |
USB |
|
Flash memory |
128M(U Disk) |
|
Software Compatability |
Type3/Ucancam Artcam |
|
Running Enviroment |
Temperature: 0℃～45℃ |
Applicable industry
Wood industry, furniture, woodworker, relief; Advertising industry, breastplate, footplate; Art-craft industry, double-color board, bamboo crafts
