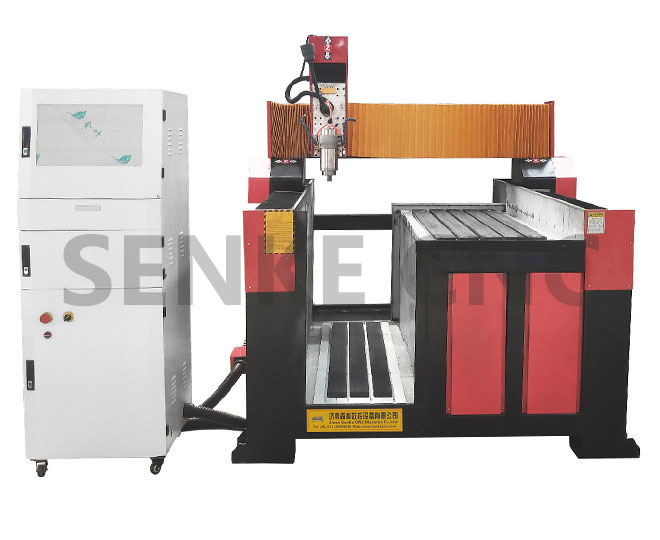

Main Features：
1. nc-studio /DSP control,the strongest steel made new dargon gate,strong enough
2. X、Y axes transmission with gear rack, Z axis transmission with imported ball screws, ensures stable and smooth movement of the machine.
3. all in one separately control box,can put computer
4. Applicatin of driver with high definition subdivision ensures fast speed and high accuracy.
5. High power spindle, brushless, water cooling/air cooling, working vigorously with low noise.
6. the Y adopt taiwan imported hiwin/pmi square rails,fast speed,high precision
7.strongest body structure,thicked wall never broken or damage
8.with water tank suitable for all kinds of materails work
Technical Parameter:
|
Model |
SKS-9015 |
SKS-1325 |
|
X*Y*Z axis working |
900*1500*300mm |
1300*2500*300mm |
|
Table Size |
1300*3005*1600 |
|
Machine frame |
Strong steel made/T support heavy duty body |
|
Spindle power |
3kw/4.5KW /5.5kw (water cooled) |
|
X*Y*Z movement |
Gear rack /Square rail/German Ball Screw |
|
Max move speed |
30000mm/min |
|
Max engraving speed |
7000mm/min |
|
Spindle speed |
0-24000rpm |
|
Control system |
NC-Studio control (dsp optional) |
|
Drive Motors |
Stepper(servo motors&drivers optional) |
|
Cooling system |
Water tank,water month and whole cooling system |
|
Inverter power |
Fuling 3.7kw,7.5kw(depend on spindle choose) |
|
Voltage |
380V,50Hz/60Hz or customized |
|
Working Dictate |
G code |
|
Software |
Artcam Software |
|
Collet |
ER20-32 |
|
Packing size |
3.1*1.7*1.82M |
3.4*2.25*1.83M |
|
weight |
1200KGS |
1380KGS |
|
Standard equipment included |
1.automatic oil injection system
2.Tool sensor(if needed)
3.water pumps |
Applications:
Stone carving machine can meet the requirements of personalized home outfit, tooling design, can be used as a decoration company, stone industry, advanced processing equipment, carving stone industry is suitable for marble, granite, jade, stone, black stone and other stone material, which can realize three-dimensional relief, bottom tip carving, flat, line carve, pour the side carving, drilling, etc., due to the machine with complete functions and so can be used for machining of wood, plastic, glass, ceramic, metal, etc. All materials.
parts use on the machine:
